Quality Used Yizumi 320 Ton UN320A5S Injection Molding Machine

Item No. Z-Y-010YizumiYear 2024China

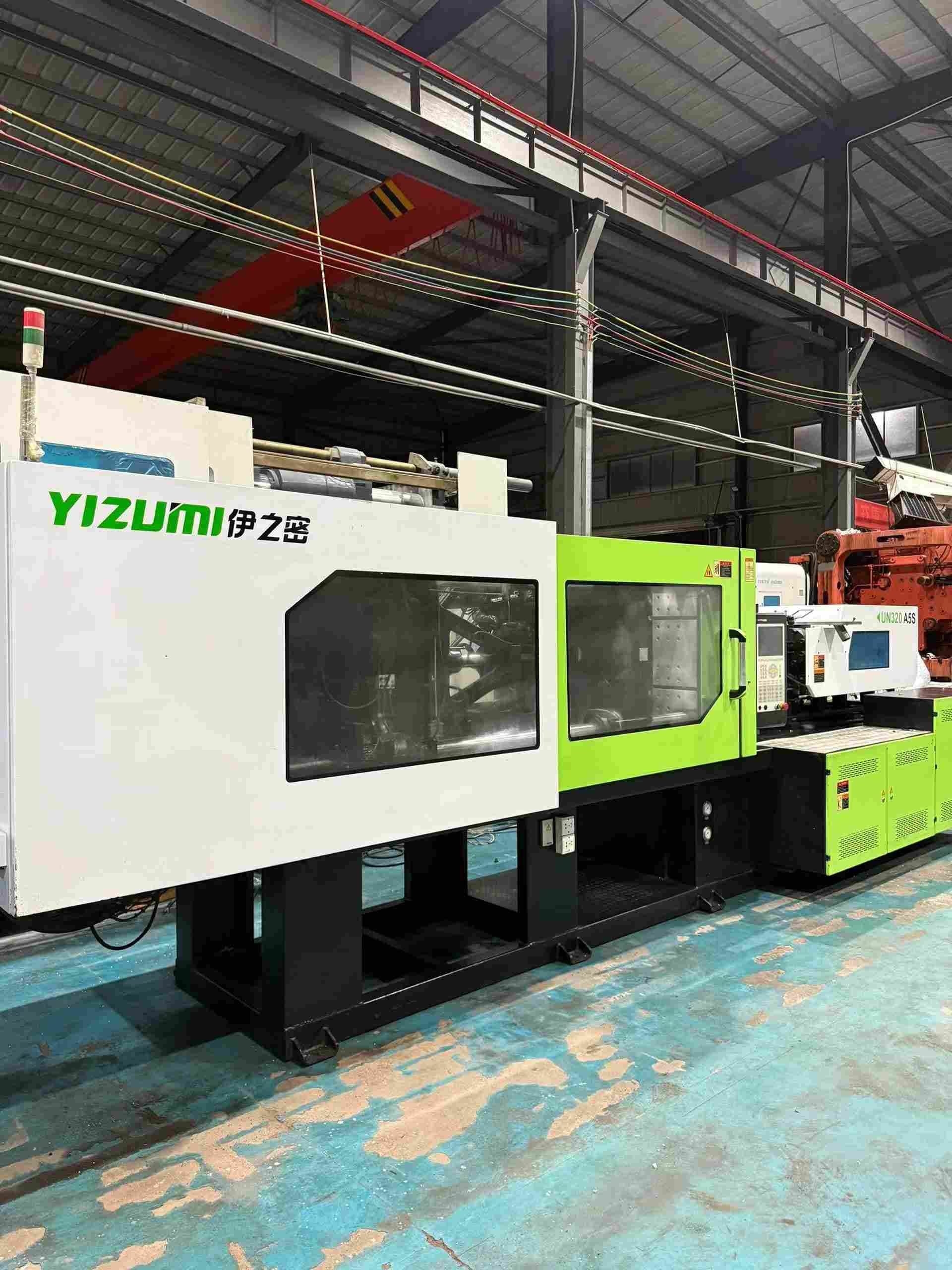

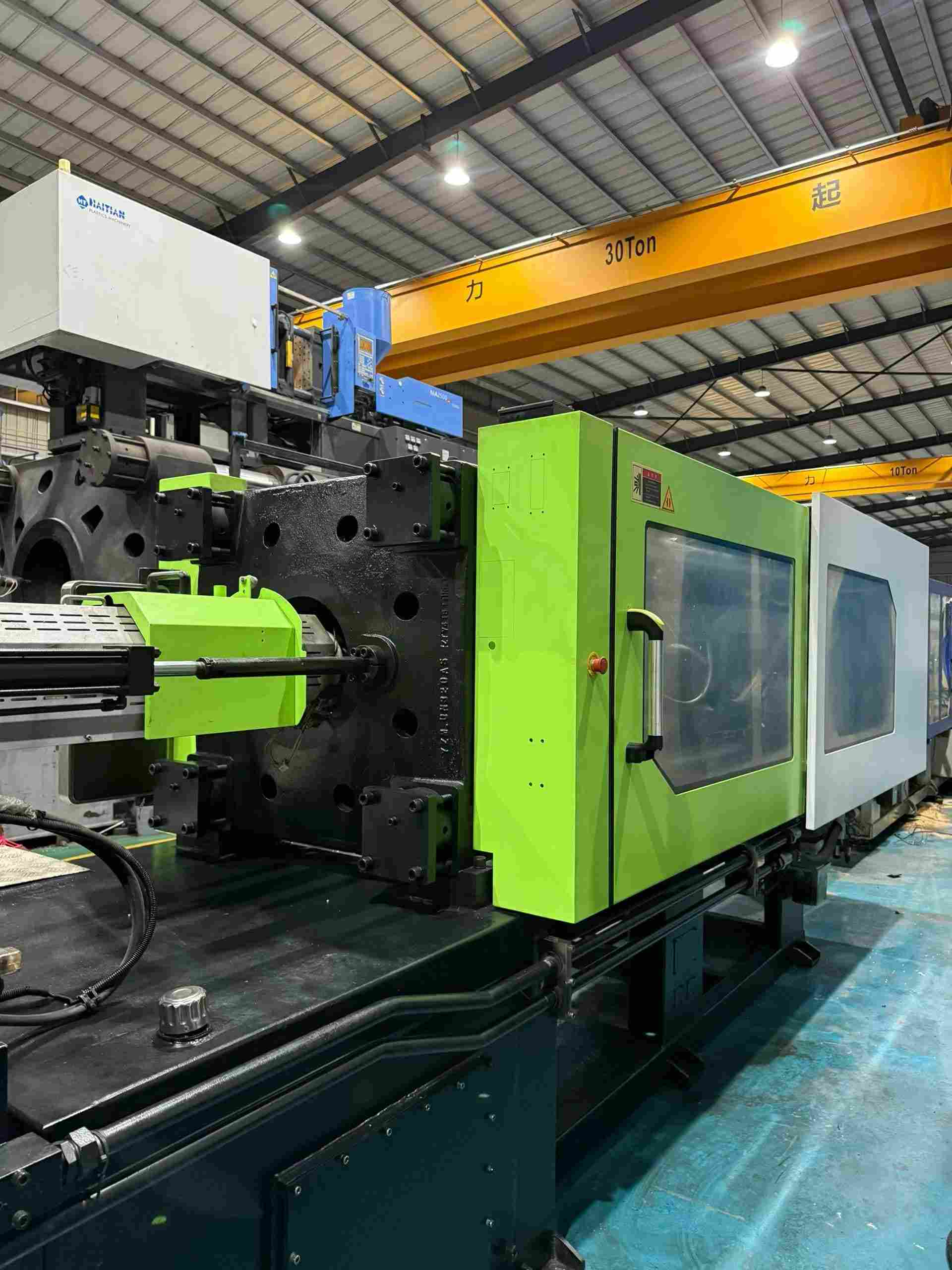

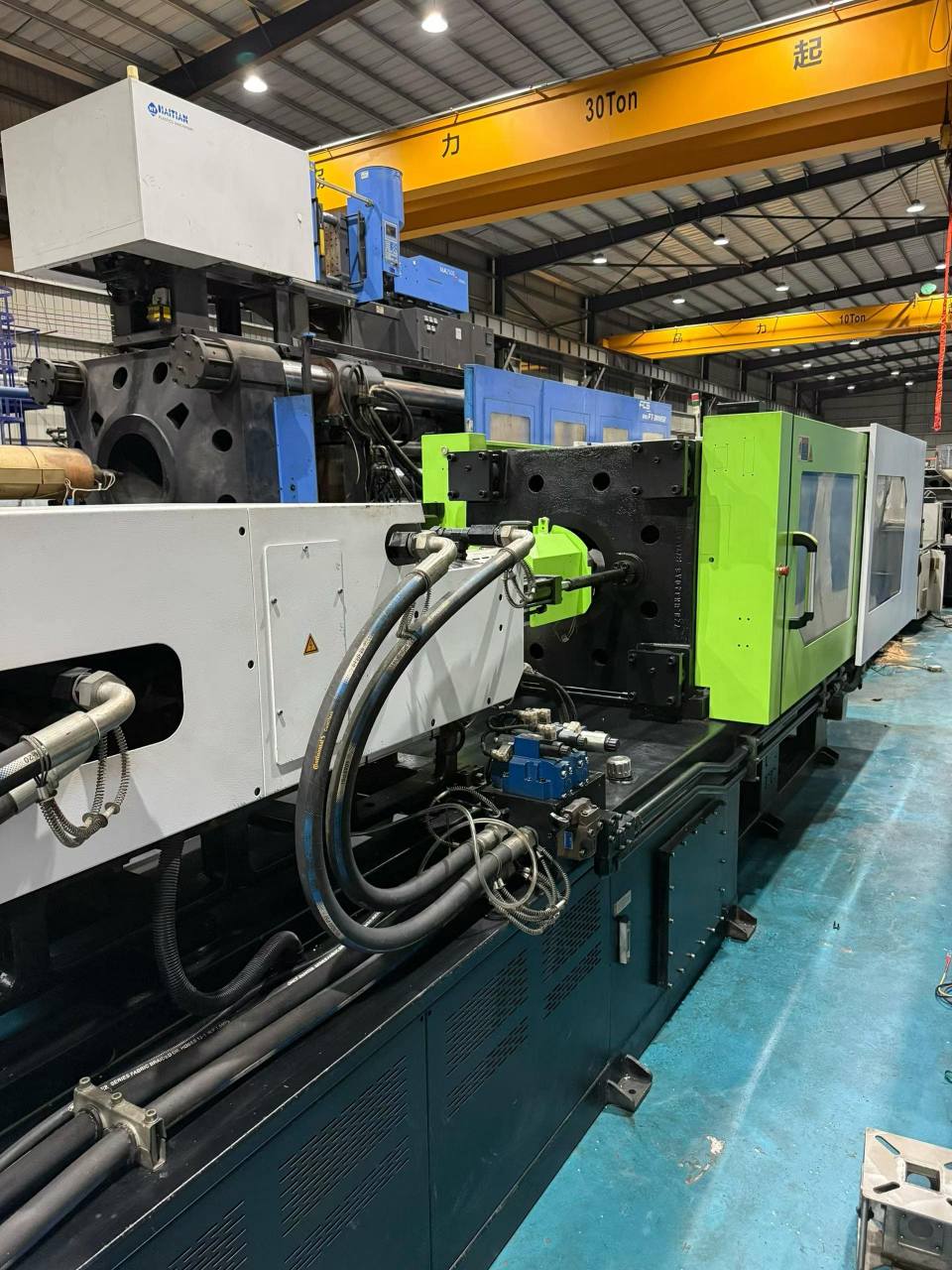

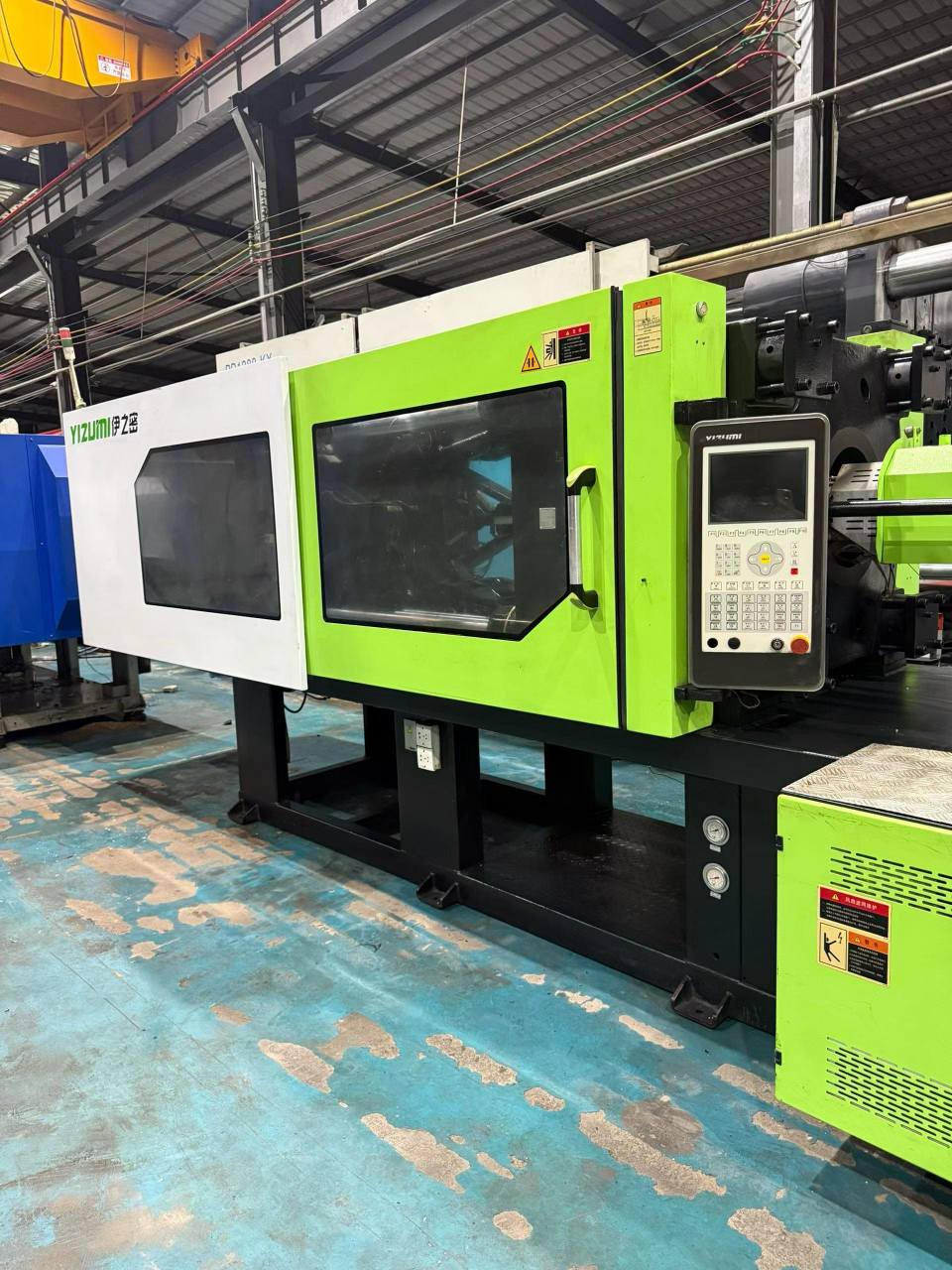

Used Yizumi UN320A5S Injection Molding Machine, 320 tons, equipped with a 68mm B-type screw. Ideal for high-volume production of medium to large automotive, home appliance, and logistics plastic parts.

Request a QuoteSpecification PDF

Specifications

Item Number: Z-Y-010
Brand: Yizumi
Model: UN320A5S (1885/3200)
Year: 2024
Location: Dongguan City, China
Screw Diameter (mm): 68
Injection Weight (PS) (g): 985.6
Injection Rate (PS) (g/s): 306.7
Clamping Force (kN): 3200
Dist. Between Tie Bars (H x V) (mm): 710×670
Machine Dimension (L x W x H) (m): 6.96×1.85×2.50
Machine Weight (t): 13.5

Tonnage Range: 300-500T

Why This Machine

Well-maintained 2024 unit, stable for medium-large plastic parts. Ready for mass production, with inspection reports and global shipping.

Description

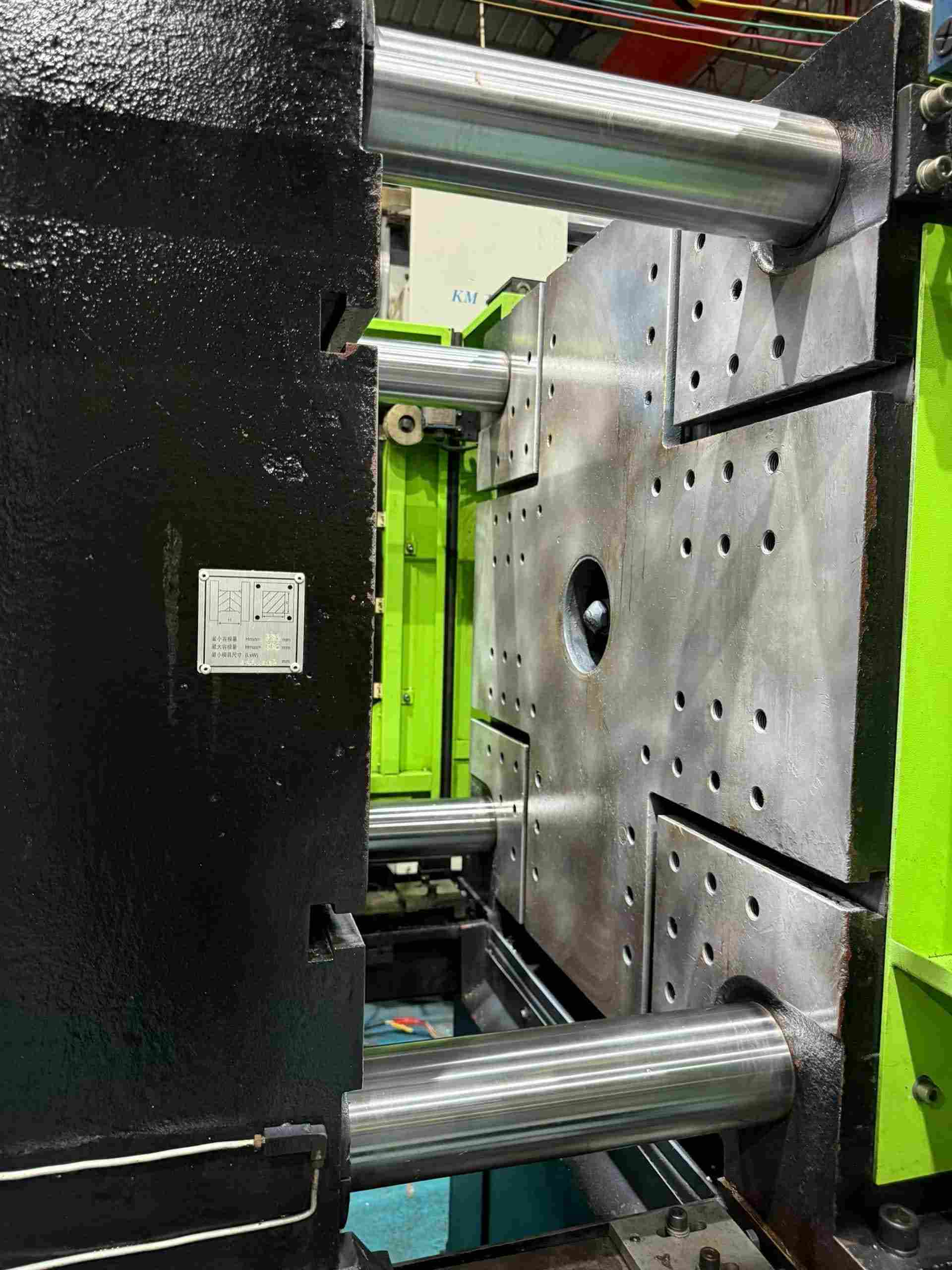

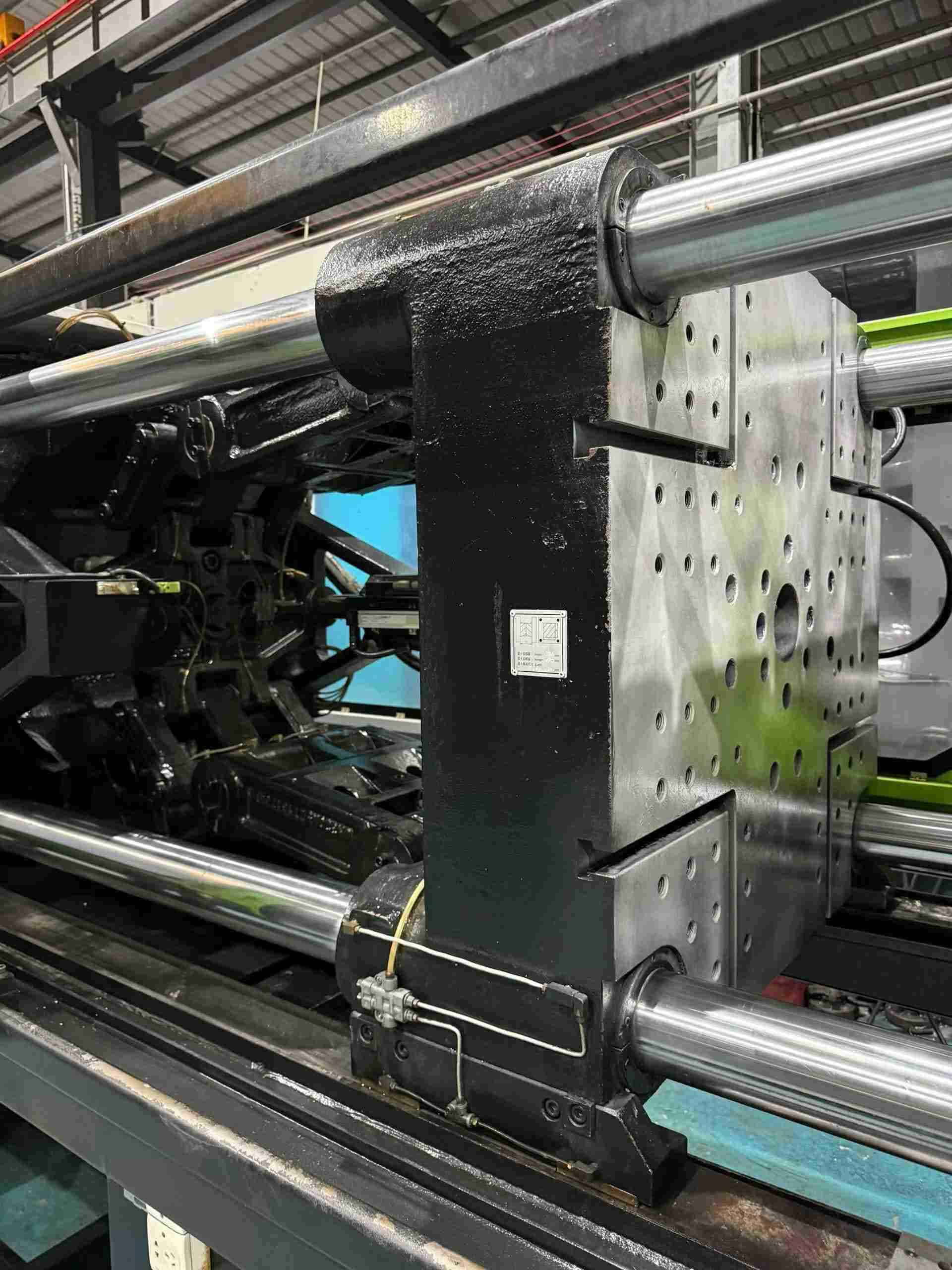

Used Yizumi UN320A5S injection molding machine with B-spec 68mm screw. 3200kN (320 ton) clamping force. Theoretical injection volume:1071.3 cm³, injection weight 985g (PS), max injection pressure 176.1 MPa. Tie-bar inner size 710×670mm, mold thickness 220-660mm.
