Used 220 Ton EM220-SVP-2 Injection Molding Machine

Item No. Y-Z-007Chen HsongYear 2014China

Used EM220-SVP-2 injection molding machine,220-ton clamping force with triple-screw options for mass-producing medium-sized plastic parts.

Request a QuoteSpecification PDF

Specifications

Item Number: Y-Z-007
Brand: CHEN HSONG
Model: EM220-SVP-2
Year: 2014
Location: Dongguan City, China
Screw Diameter (mm): 52
Injection Weight (PS) (g): 459
Injection Rate (PS) (g/s): 210
Clamping Force (kN): 2200

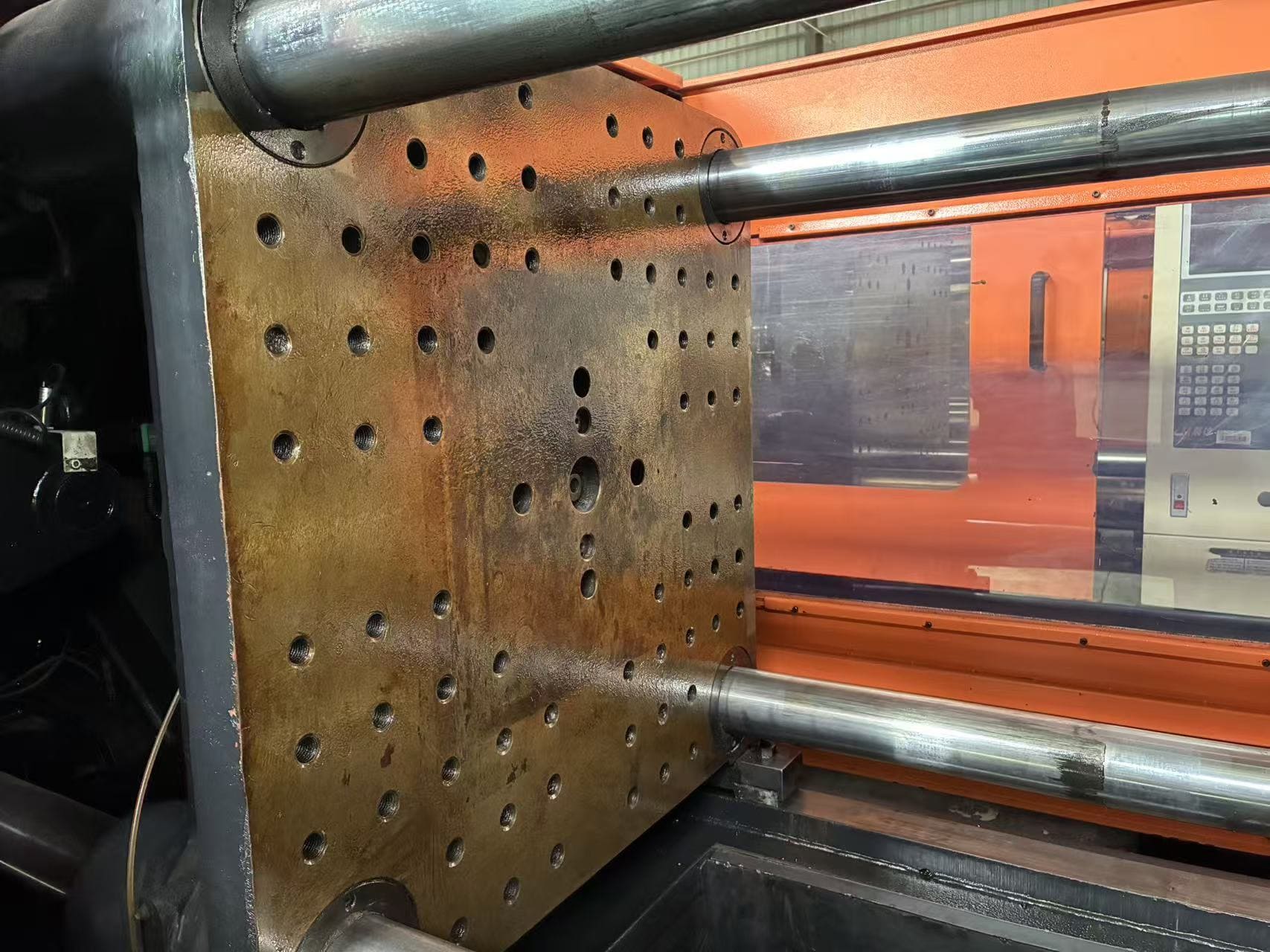

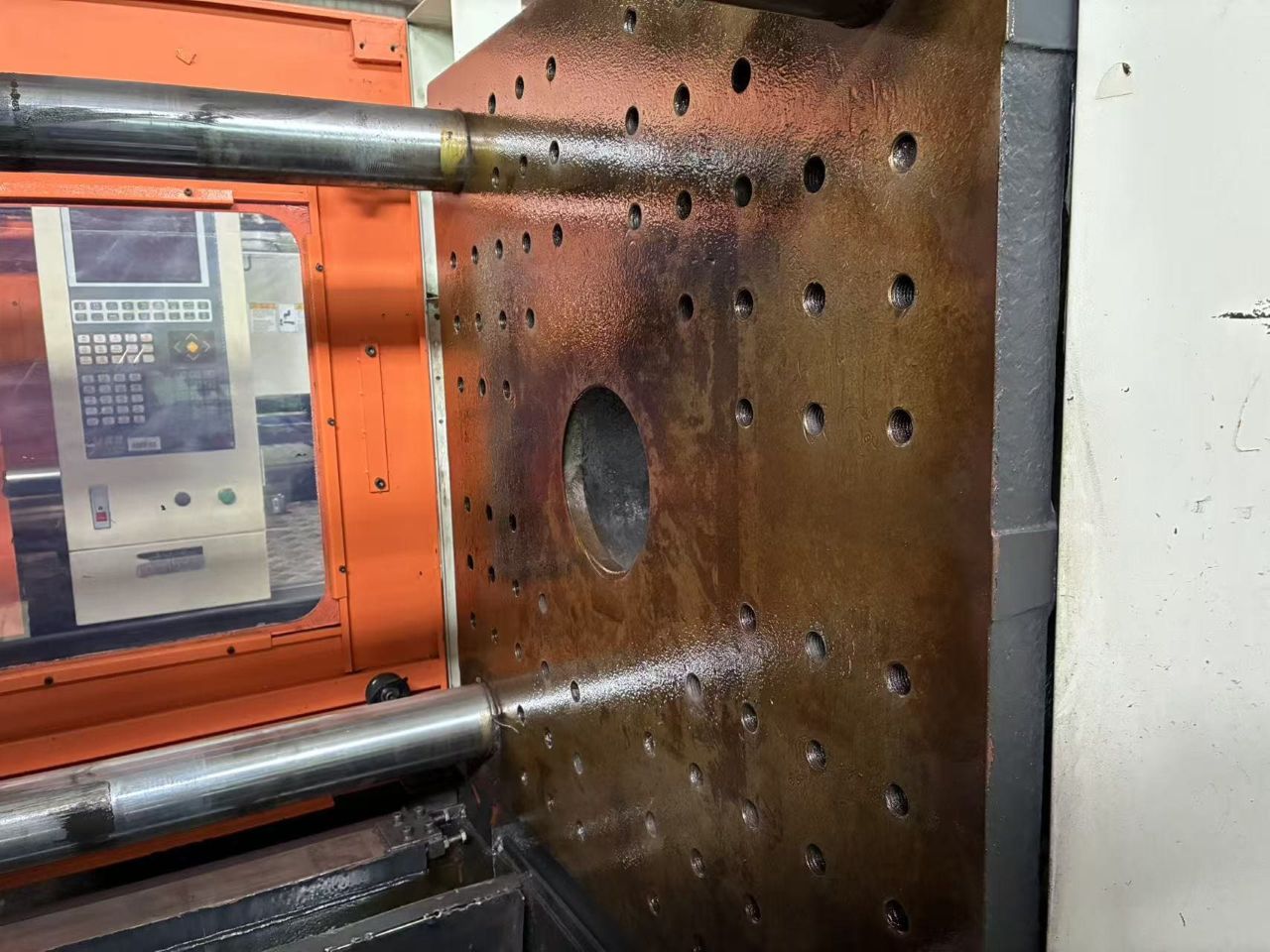

Dist. Between Tie Bars (H x V) (mm): 560×560
Machine Dimension (L x W x H) (m): 6.1×1.5×2.1
Machine Weight (t): 7

Tonnage Range: 100-300T

Why This Machine

The EM220-SVP-2 is a versatile injection molding machine featuring 220-ton clamping force and three screw options (46/52/60 mm). Ideal for household plastics, appliance housings, automotive interiors, packaging, and precision components. We offer detailed inspection reports, financing options, and worldwide shipping.

Description

Used EM220-SVP-2 injection molding machine with three screw options (46/52/60 mm) and 220-ton clamping force. PS shot weight ranges from 359g to 611g, with maximum injection pressure up to 2,345 kgf/cm². Featuring 560×560 mm tie-bar spacing and 195–600 mm mould height, it is suitable for producing household plastics, electronic housings, automotive interior parts, packaging, and precision industrial components.
