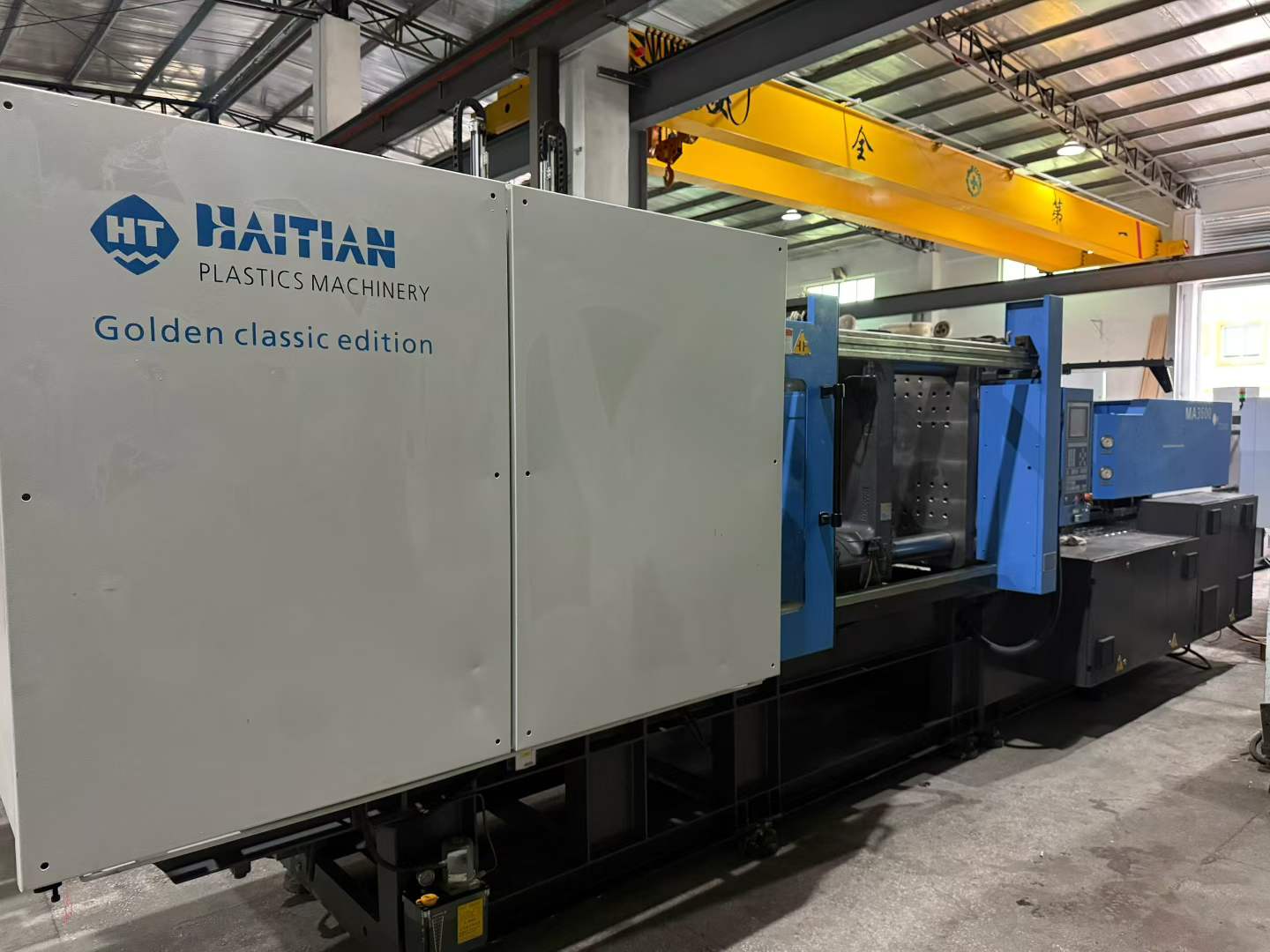

Used Haitian 360 Ton MA3600/2250G Injection Molding Machine

Item No. Y-H-004HaitianYear 2016China

Used 360‑ton Haitian MA3600/2250G injection molding machine with 70mm B‑spec screw. Suitable for mass‑producing large thick‑wall household, electronic, automotive and heavy‑duty industrial plastic parts.

Request a QuoteSpecification PDF

Specifications

Item Number: Y-H-004
Brand: Haitian
Model: MA3600/2250G
Year: 2016
Location: Dongguan City, China
Screw Diameter (mm): 70
Injection Weight (PS) (g): 1127
Injection Rate (PS) (g/s): 323
Clamping Force (kN): 3600
Dist. Between Tie Bars (H x V) (mm): 710×710
Machine Dimension (L x W x H) (m): 7.4×1.88×2.6
Machine Weight (t): 14.7

Tonnage Range: 300-500T

Why This Machine

The Haitian MA3600/2250G delivers 360-ton clamping force with 710mm×710mm tie bar spacing, ideal for medium-to-large parts and deep-cavity molds. Its 1473g shot weight (C-screw) handles demanding applications. The servo-hydraulic system ensures energy efficiency, precision, and reliability—a proven workhorse for packaging and automotive production.

Description

Used Haitian MA3600/2250G injection molding machine with 70 mm B-spec screw. 3600 kN clamping force, 1239 cm³ shot volume, 1127 g shot weight, 180 MPa injection pressure, 710×710 mm tie bars, 250–710 mm mold thickness, 110 kN ejector force.
