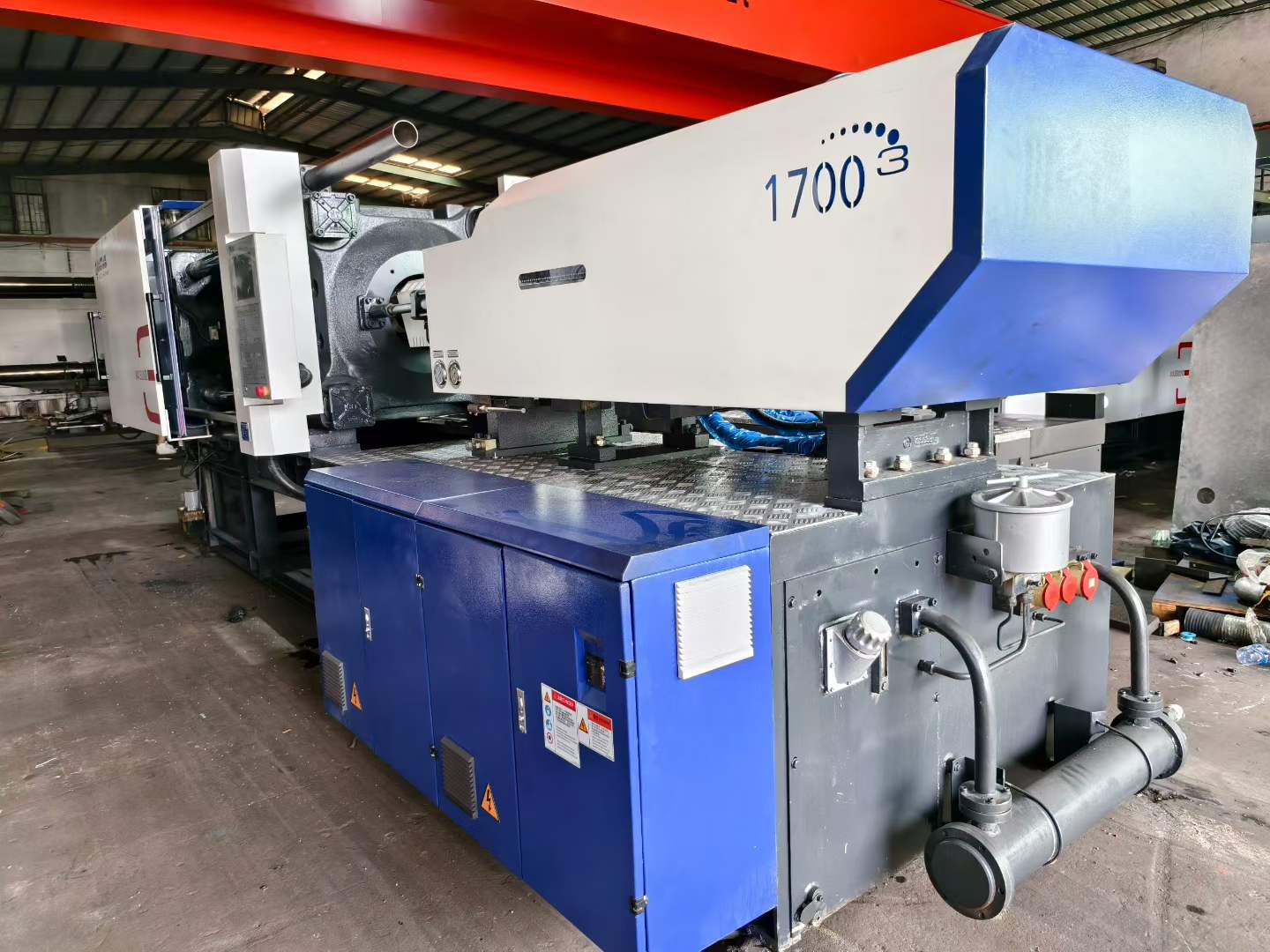

Used Haitian MA3200Ⅲ/1700 320 Ton Injection Molding Machine

Item No. C-H-027HaitianYear 2024China

Used 320-ton Haitian MA3200Ⅲ/1700 injection molding machine, 65mm B-screw, ideal for mass-producing large household, appliance, automotive and heavy-duty industrial plastic parts.

Request a QuoteSpecification PDF

Specifications

Item Number: C-H-027
Brand: Haitian
Model: MA3200Ⅲ/1700
Year: 2024
Location: Dongguan City, China
Screw Diameter (mm): 65
Injection Weight (PS) (g): 846
Injection Rate (PS) (g/s): 339
Clamping Force (kN): 3200
Dist. Between Tie Bars (H x V) (mm): 680×680
Machine Dimension (L x W x H) (m): 7.1×1.8×2.4
Machine Weight (t): 13.2

Tonnage Range: 300-500T

Why This Machine

Haitian MA3200Ⅲ/1700 delivers 320-ton clamping force with 680×680mm tie bar spacing and up to 981g shot weight (C-screw). Its servo-hydraulic system ensures energy savings and stable production—ideal for automotive, household, and industrial medium-to-large parts.

Description

Used Haitian MA3200III/1700 injection molding machine with 65 mm B-screw. 3200 kN clamping force, 929 cm³ shot volume, 846 g PS shot weight, 182 MPa injection pressure, 680×680 mm tie bars, 250–680 mm mold thickness, 62 kN ejector force.
