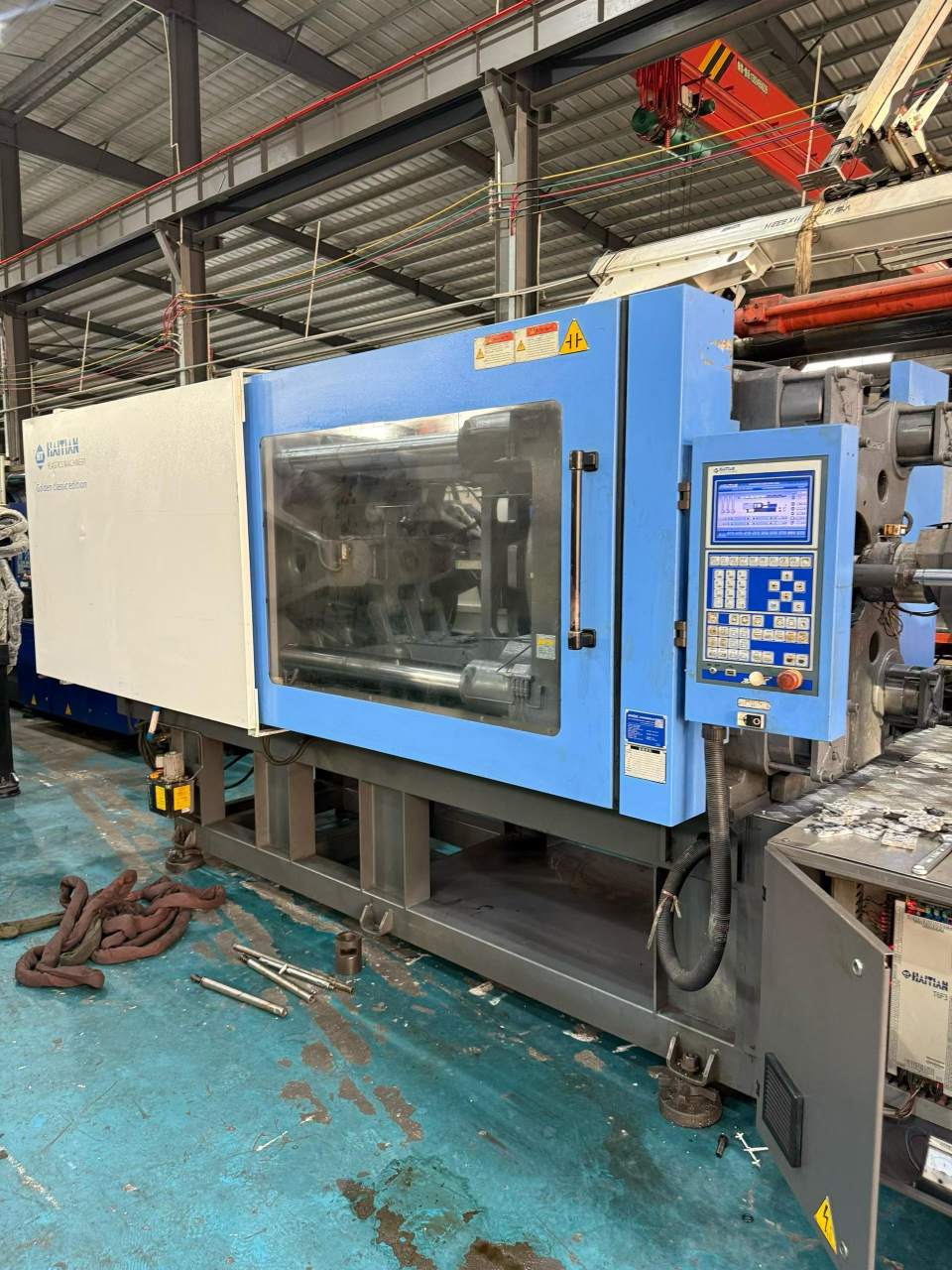

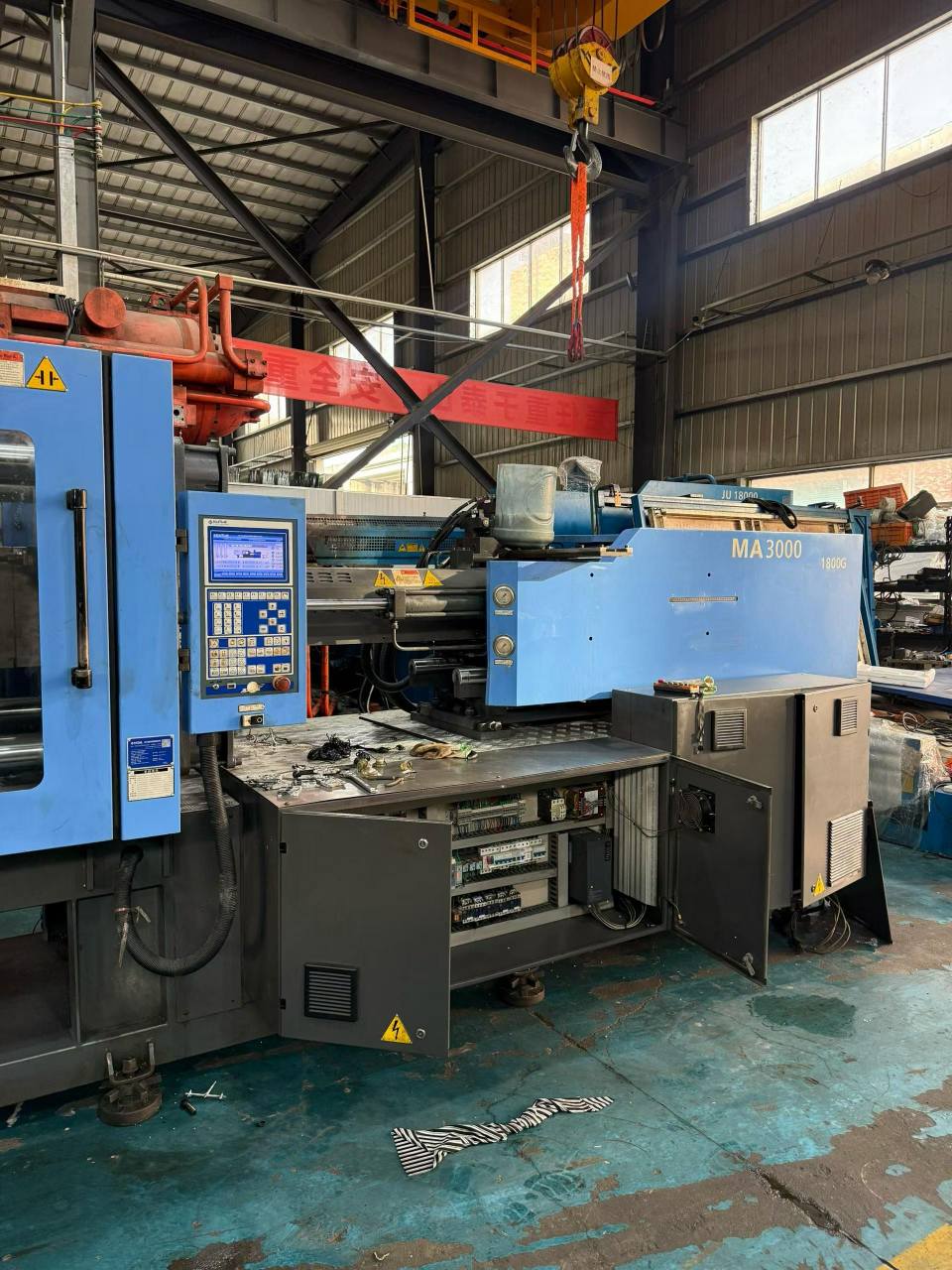

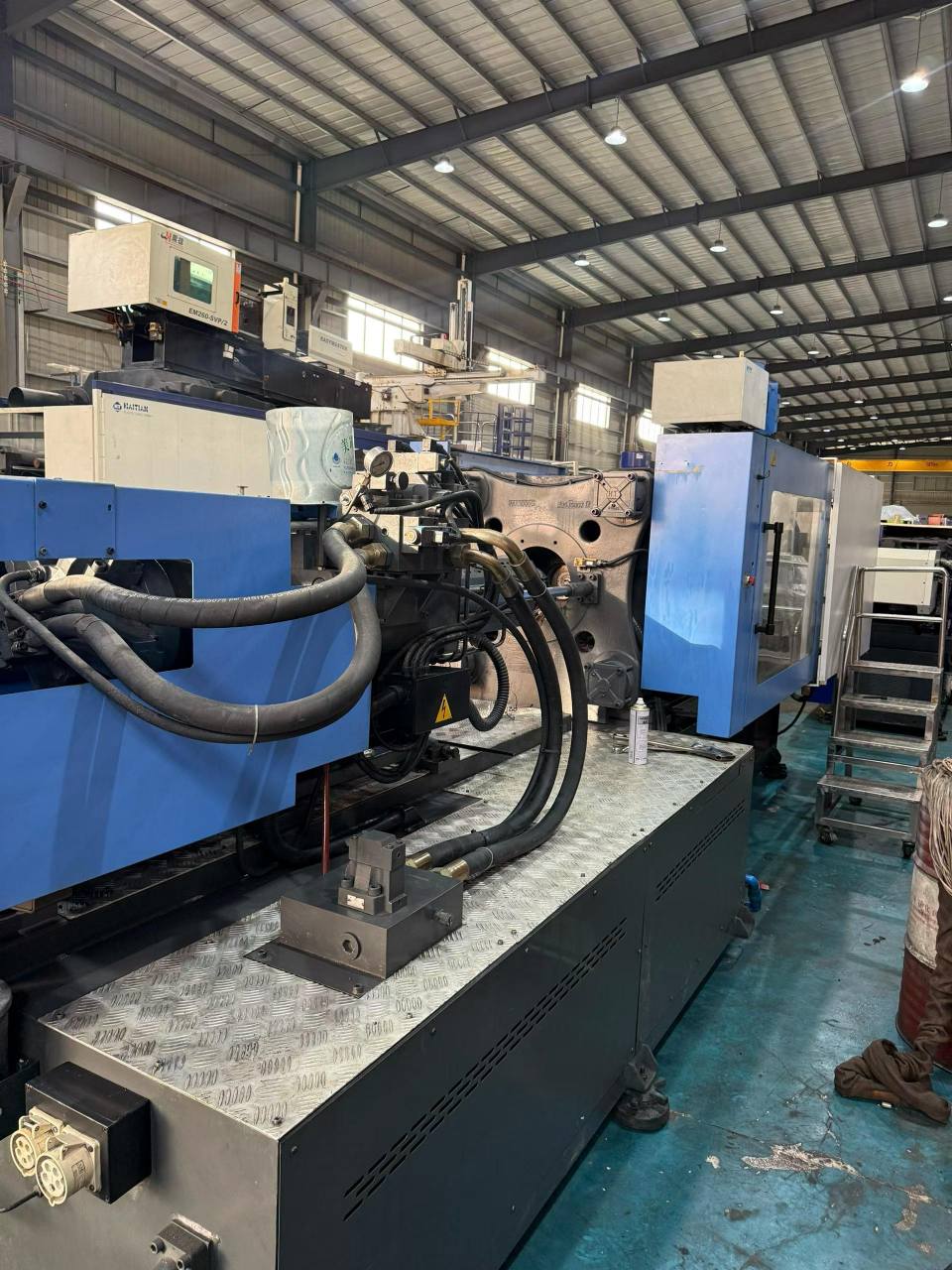

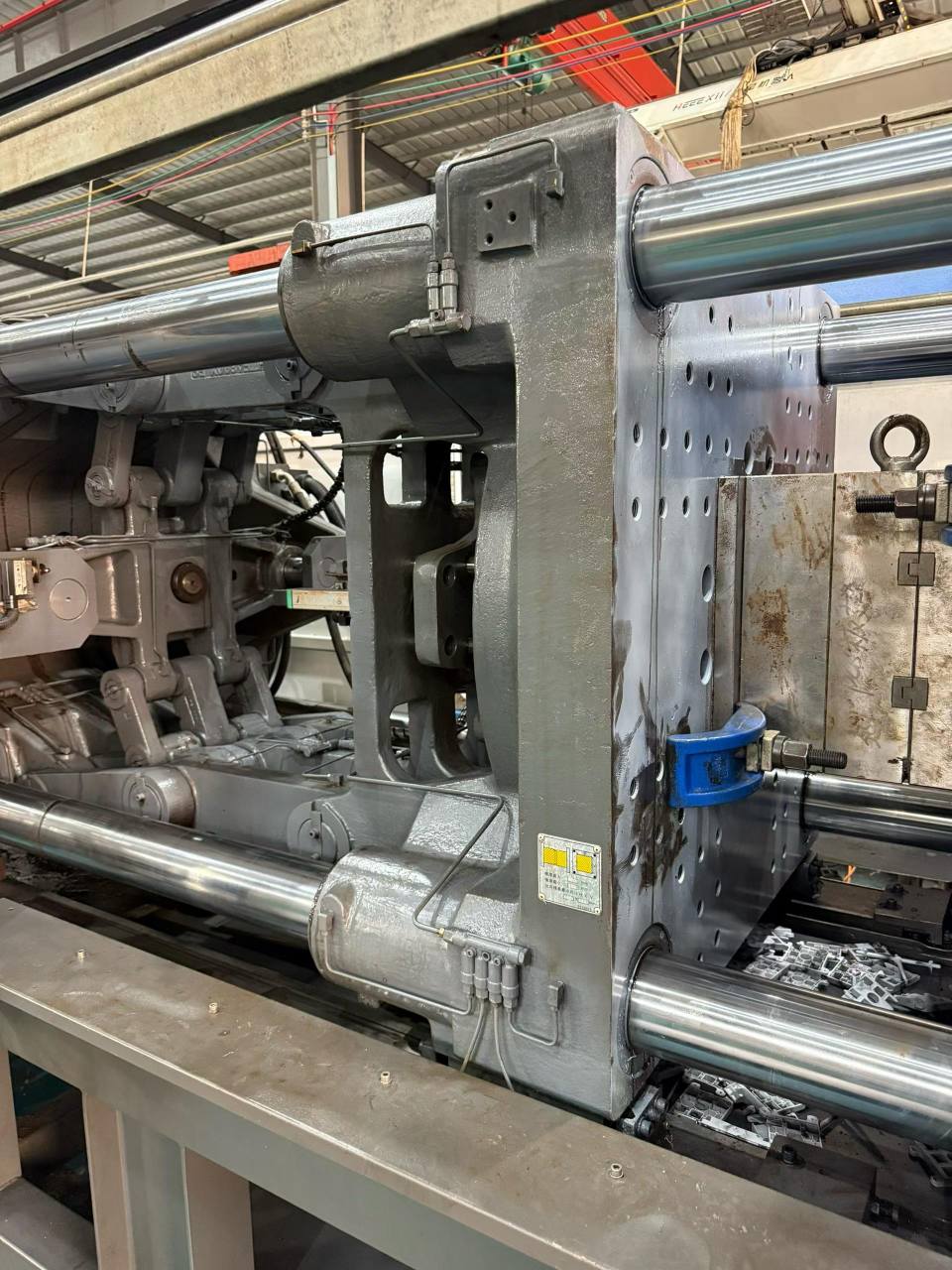

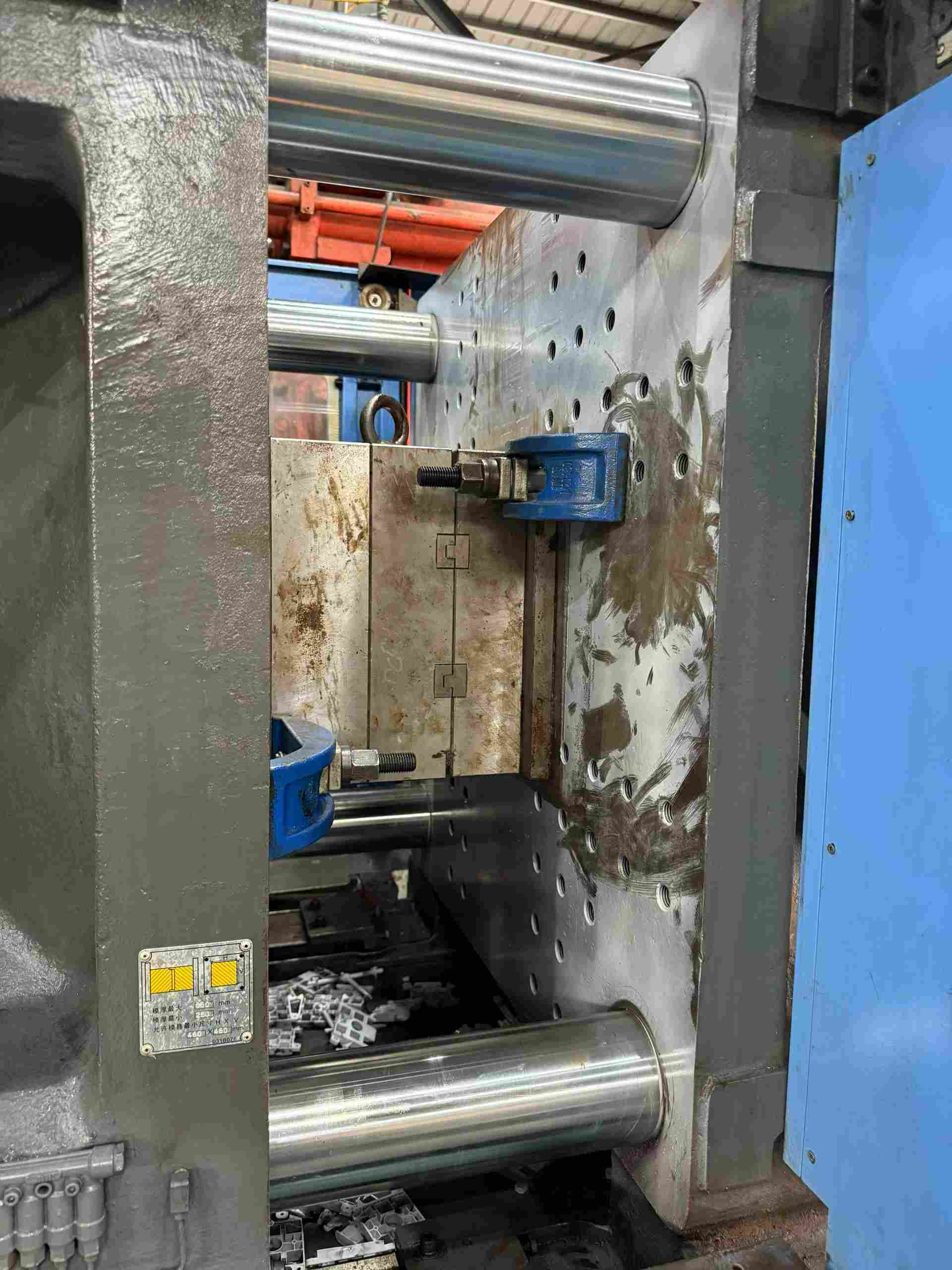

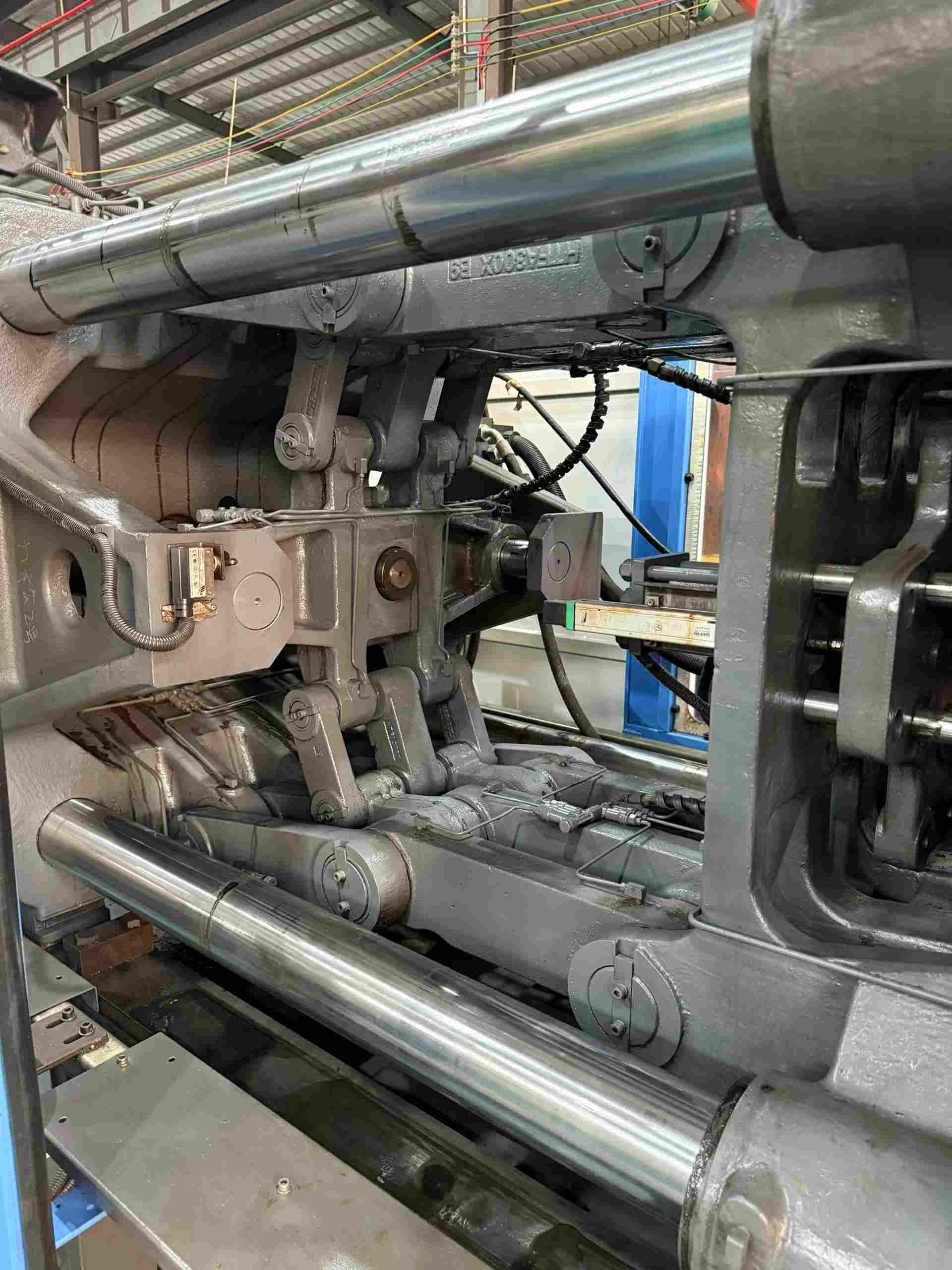

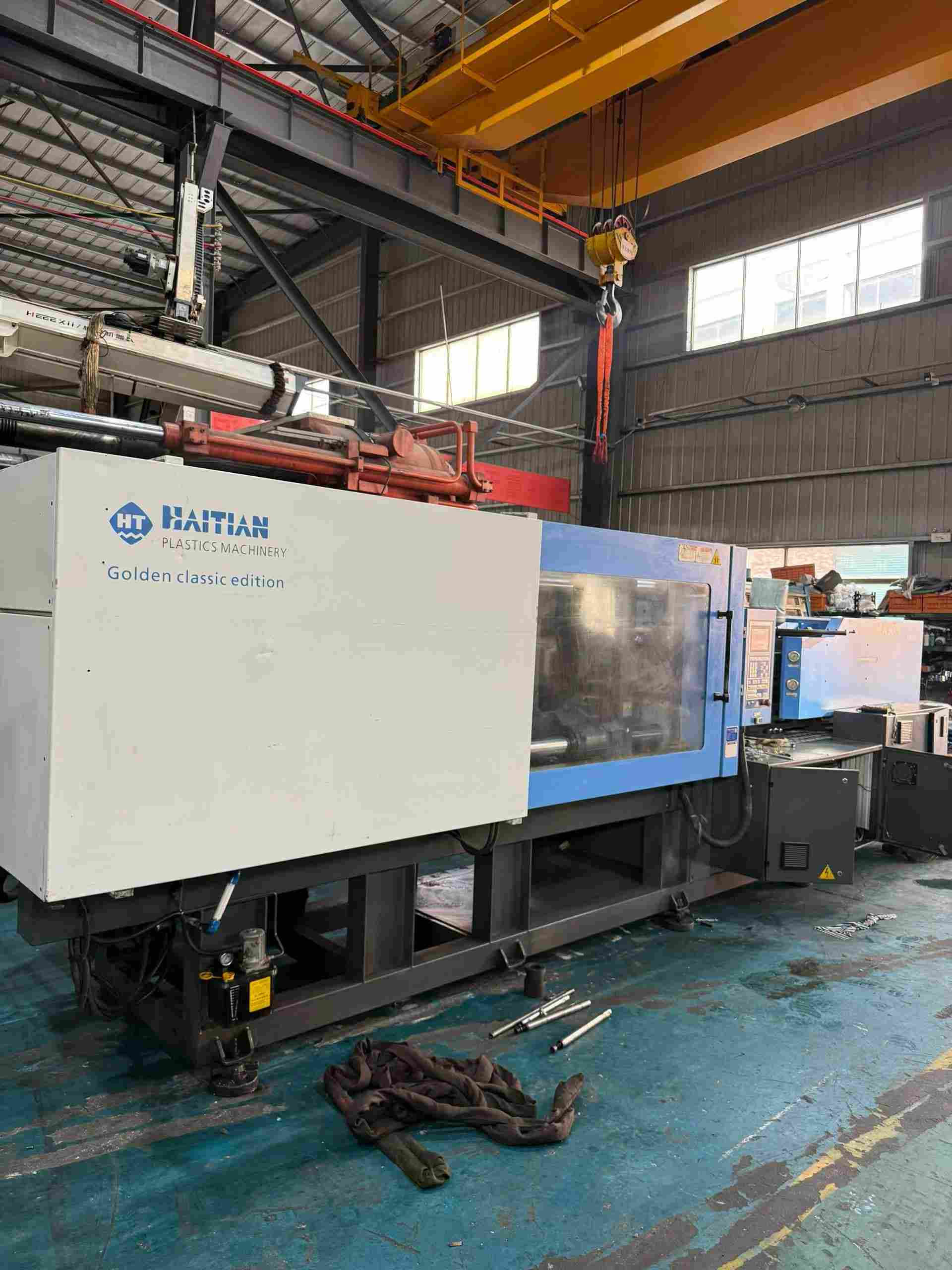

Used Haitian 300 Ton MA3000/1800G Injection Molding Machine

Item No. Z-H-003HaitianYear 2016China

Used 300‑ton Haitian MA3000/1800G injection molding machine with 65mm B‑spec screw. Perfect for mass‑producing medium‑large thick‑wall household, electronic, automotive and industrial plastic parts.

Request a QuoteSpecification PDF

Specifications

Item Number: Z-H-003
Brand: Haitian
Model: MA3000/1800G
Year: 2016
Location: Dongguan City, China
Screw Diameter (mm): 65
Injection Weight (PS) (g): 903
Injection Rate (PS) (g/s): 279
Clamping Force (kN): 3000
Dist. Between Tie Bars (H x V) (mm): 660×660
Machine Dimension (L x W x H) (m): 6.4×1.76×2.45
Machine Weight (t): 11.3

Tonnage Range: 100-300T

Why This Machine

The Haitian MA3000/1800G delivers 300-ton clamping force with 769g shot weight and 660mm×660mm tie bar spacing, ideal for mid-to-large parts. Its servo-hydraulic system cuts energy costs while maintaining precision. Proven in insert molding and packaging, this machine offers reliability and strong ROI for diverse production needs.

Description

Used Haitian MA3000/1800G injection molding machine with 65 mm B-spec screw. 3000 kN clamping force, 992 cm³ shot volume, 903 g shot weight, 182 MPa injection pressure, 660×660 mm tie bars, 250–660 mm mold thickness, 62 kN ejector force.
