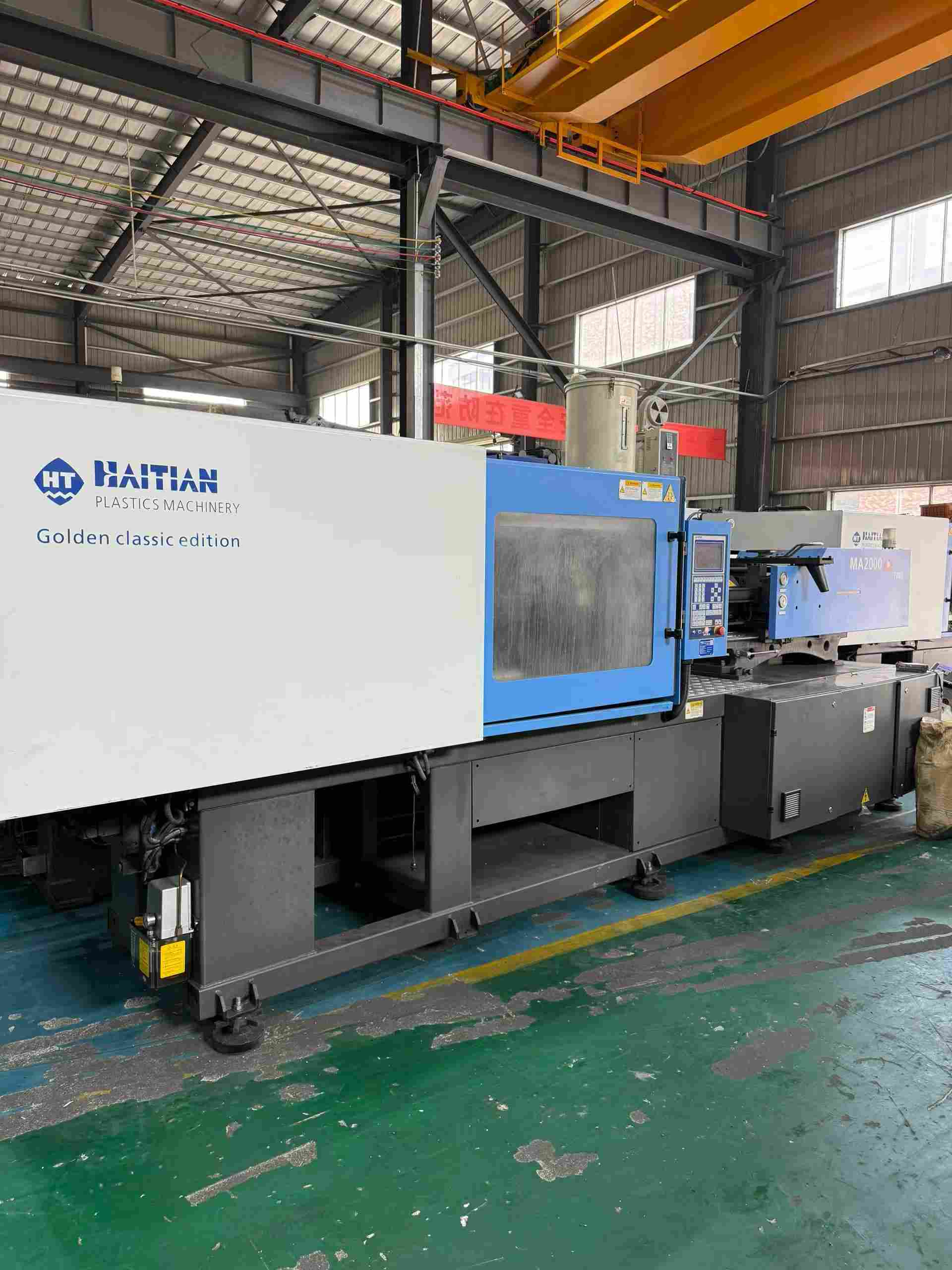

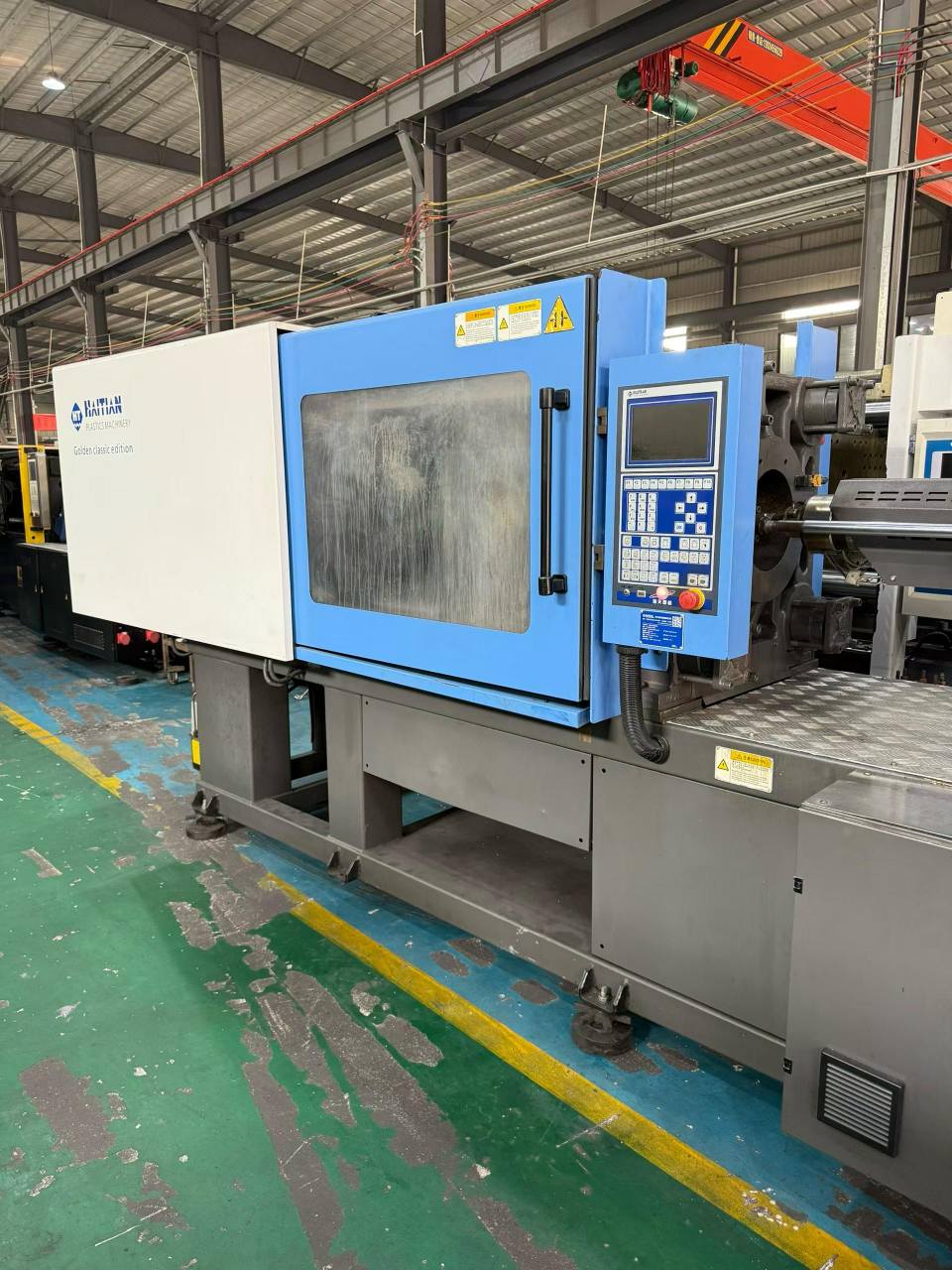

Used Haitian 200 Ton MA2000/770G Injection Molding Machine

Item No. Z-H-001HaitianYear 2015China

Used 200‑ton Haitian MA2000/770G injection molding machine with 50mm B‑spec screw. Suitable for mass‑producing medium‑size household, electronic, automotive and general industrial plastic parts.

Request a QuoteSpecification PDF

Specifications

Item Number: Z-H-001
Brand: Haitian
Model: MA 2000/770G
Year: 2015
Location: Dongguan City, China
Screw Diameter (mm): 50
Injection Weight (PS) (g): 411
Injection Rate (PS) (g/s): 174
Clamping Force (kN): 2000
Dist. Between Tie Bars (H x V) (mm): 510×510
Machine Dimension (L x W x H) (m): 5.48×1.35×2.1
Machine Weight (t): 6.3

Tonnage Range: 100-300T

Why This Machine

This used Haitian MA2000/770G is a proven, production-ready machine at a fraction of new equipment cost. With 200-ton clamping force, 50 mm B-spec screw, and 62 kN ejection, it handles a wide range of medium-sized parts reliably.

Description

Used Haitian MA2000/770G injection molding machine with 50 mm B-spec screw. 2000 kN clamping force, 452 cm³ shot volume, 411 g shot weight, 170 MPa injection pressure, 510×510 mm tie bars, 200–510 mm mold thickness, 62 kN ejector force.
