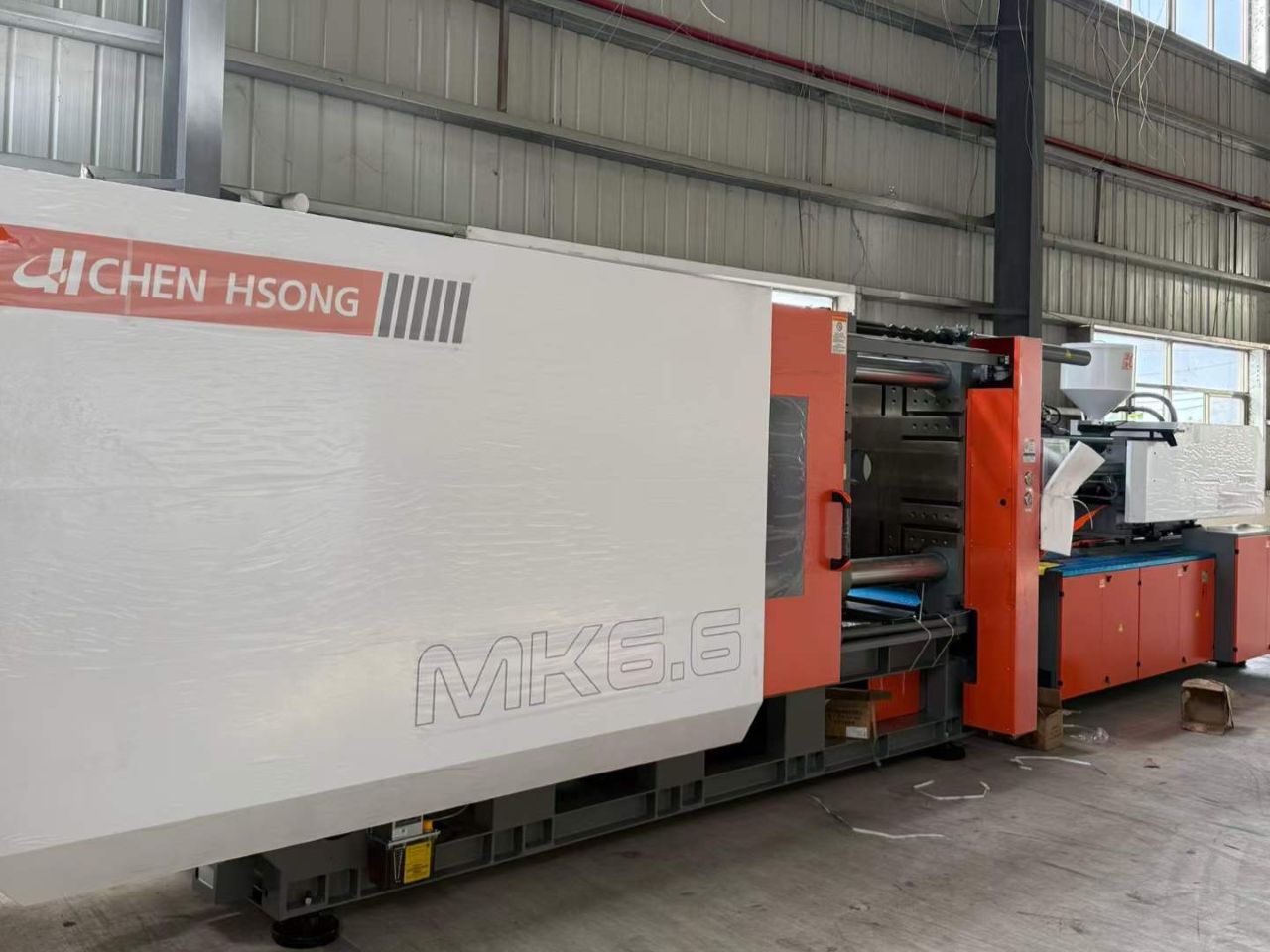

Used 658 Ton JM658‑MK6.6/A Injection Molding Machine

Item No. Z-Z-020Chen HsongYear 2023China

Used JM658‑MK6.6/A injection molding machine,658‑ton clamp force with triple‑screw options for mass‑producing super‑large plastic parts.

Request a QuoteSpecification PDF

Specifications

Item Number: Z-Z-020
Brand: CHEN HSONG
Model: JM658‑MK6.6/A
Year: 2023
Location: Dongguan City, China
Screw Diameter (mm): 90
Injection Weight (PS) (g): 2603
Injection Rate (PS) (g/s): 568
Clamping Force (kN): 6580
Dist. Between Tie Bars (H x V) (mm): 900×900
Machine Dimension (L x W x H) (m): 9.6×2.2×2.5
Machine Weight (t): 24.5

Tonnage Range: 500-1000T

Why This Machine

The JM658-MK6.6/A injection molding machine features 658-ton clamping force, three screw options (83/90/98 mm), and PS shot weights up to 3,087 g. Ideal for oversized household plastics, large electronic enclosures, automotive interior components. We offer inspection reports, financing, and worldwide shipping.

Description

Used JM658-MK6.6/A injection molding machine with three screw options (83/90/98 mm) and 658-ton clamping force. PS shot weight ranges from 2,214g to 3,087g, with injection pressure up to 2,114 kgf/cm². Featuring 900×900 mm tie-bar spacing and 350–900 mm mould thickness, it is suitable for producing household plastics, electronic housings, automotive parts, packaging, and large industrial components.
