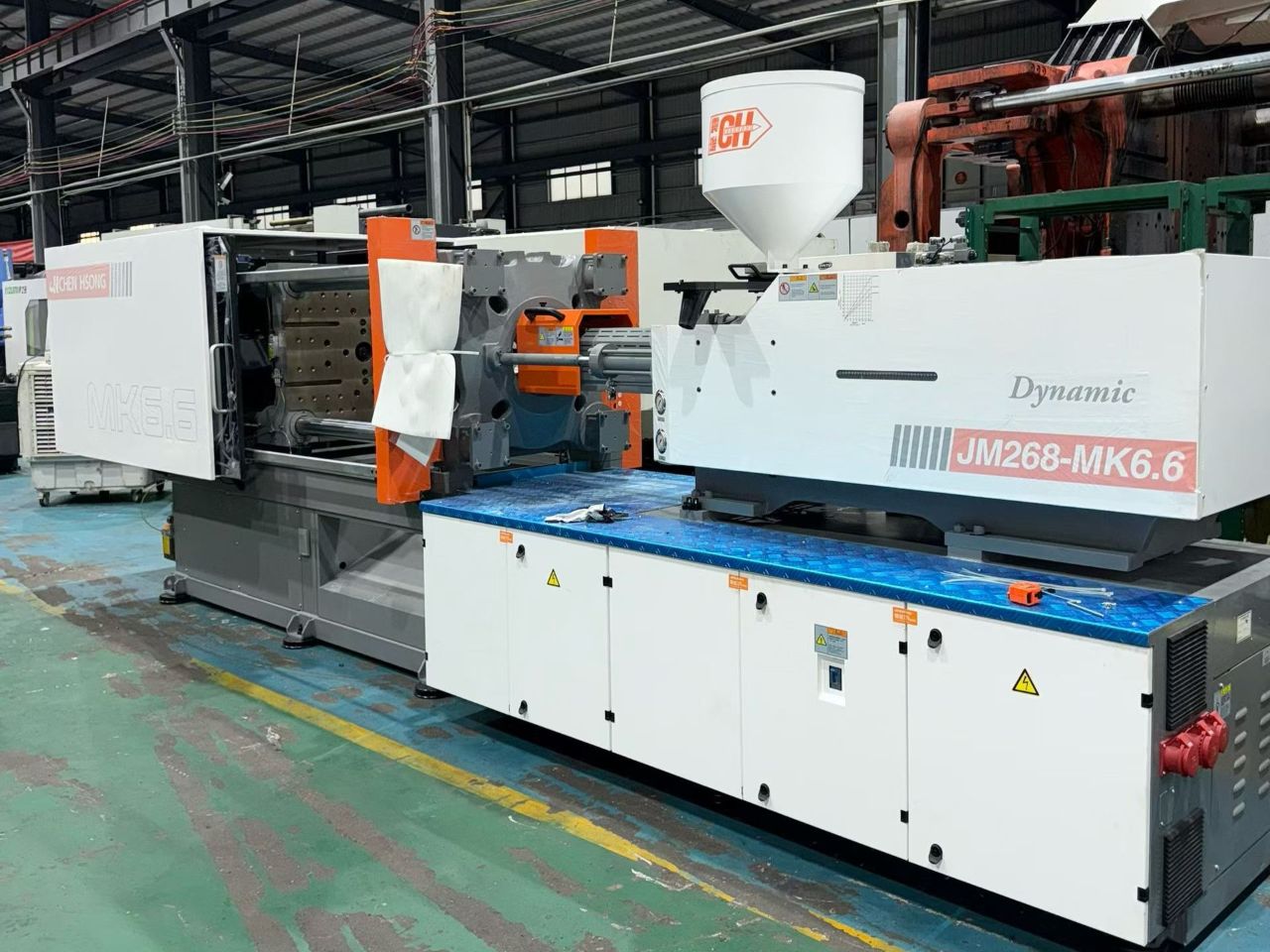

Used 268 Ton JM268‑MK6.6/C Injection Molding Machine

Item No. Z-Z-017Chen HsongYear 2023China

Used JM268‑MK6.6/C injection molding machine, 268‑ton clamp force with triple‑screw options for mass‑producing medium‑large plastic parts.

Request a QuoteSpecification PDF

Specifications

Item Number: Z-Z-017
Brand: CHEN HSONG
Model: JM268‑MK6.6/C
Year: 2023
Location: Dongguan City, China
Screw Diameter (mm): 60
Injection Weight (PS) (g): 771
Injection Rate (PS) (g/s): 319
Clamping Force (kN): 2680
Dist. Between Tie Bars (H x V) (mm): 580×580
Machine Dimension (L x W x H) (m): 6.4×1.6×2.3
Machine Weight (t): 8.5

Tonnage Range: 100-300T

Why This Machine

The JM268-MK6.6/C injection molding machine features 268-ton clamping force, three screw options (52/60/67 mm), and PS shot weights up to 962 g. Ideal for household plastics, electronics, automotive parts, and packaging. We offer inspection reports, financing, and worldwide shipping.

Description

Used JM268-MK6.6/C injection molding machine with three screw options (52/60/67 mm) and 268-ton clamping force. PS shot weight ranges from 579g to 962g, with injection pressure up to 2,365 kgf/cm². Featuring 580×580 mm tie-bar spacing and 195–610 mm mould thickness, it is suitable for producing household plastics, electronic housings, automotive parts, packaging, and medium-sized industrial components.
