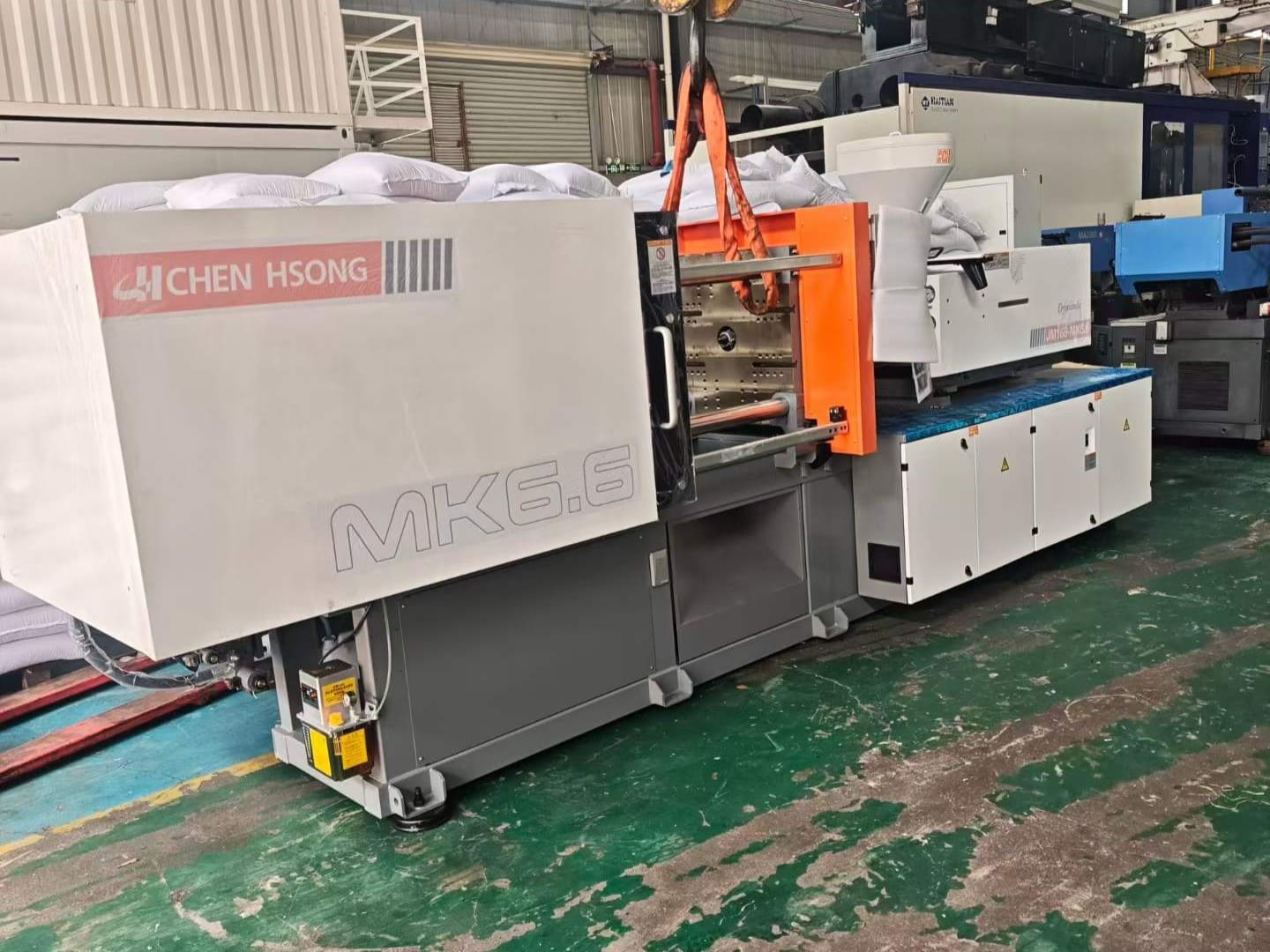

Used 168 Ton JM168‑MK6.6/C Injection Molding Machine

Item No. Z-Z-015Chen HsongYear 2024China

Used JM168‑MK6.6/C injection molding machine,168‑ton clamp force with 3 screw options, for mass‑producing medium‑small precision plastic parts.

Request a QuoteSpecification PDF

Specifications

Item Number: Z-Z-015
Brand: CHEN HSONG
Model: JM168‑MK6.6/C
Year: 2024
Location: Dongguan City, China
Screw Diameter (mm): 46
Injection Weight (PS) (g): 382
Injection Rate (PS) (g/s): 201
Clamping Force (kN): 1680
Dist. Between Tie Bars (H x V) (mm): 460×460
Machine Dimension (L x W x H) (m): 5.2×1.4×2.0
Machine Weight (t): 5.8

Tonnage Range: 100-300T

Why This Machine

The JM168-MK6.6/C is a versatile injection molding machine featuring 168-ton clamping force and three screw options (41/46/52 mm), with PS shot weights up to 444 g. Ideal for household plastics, electronic components, small automotive parts, packaging, and precision industrial components. We offer inspection reports, financing, and worldwide shipping.

Description

Used JM168-MK6.6/C injection molding machine with three screw options (41/46/52 mm) and 168-ton clamping force. PS shot weight ranges from 276g to 444g, with injection pressure up to 2,233 kgf/cm². Featuring 460×460 mm tie-bar spacing and 160–520 mm mould thickness, it is suitable for producing household plastics, electronic housings, automotive parts, packaging, and precision industrial components.
