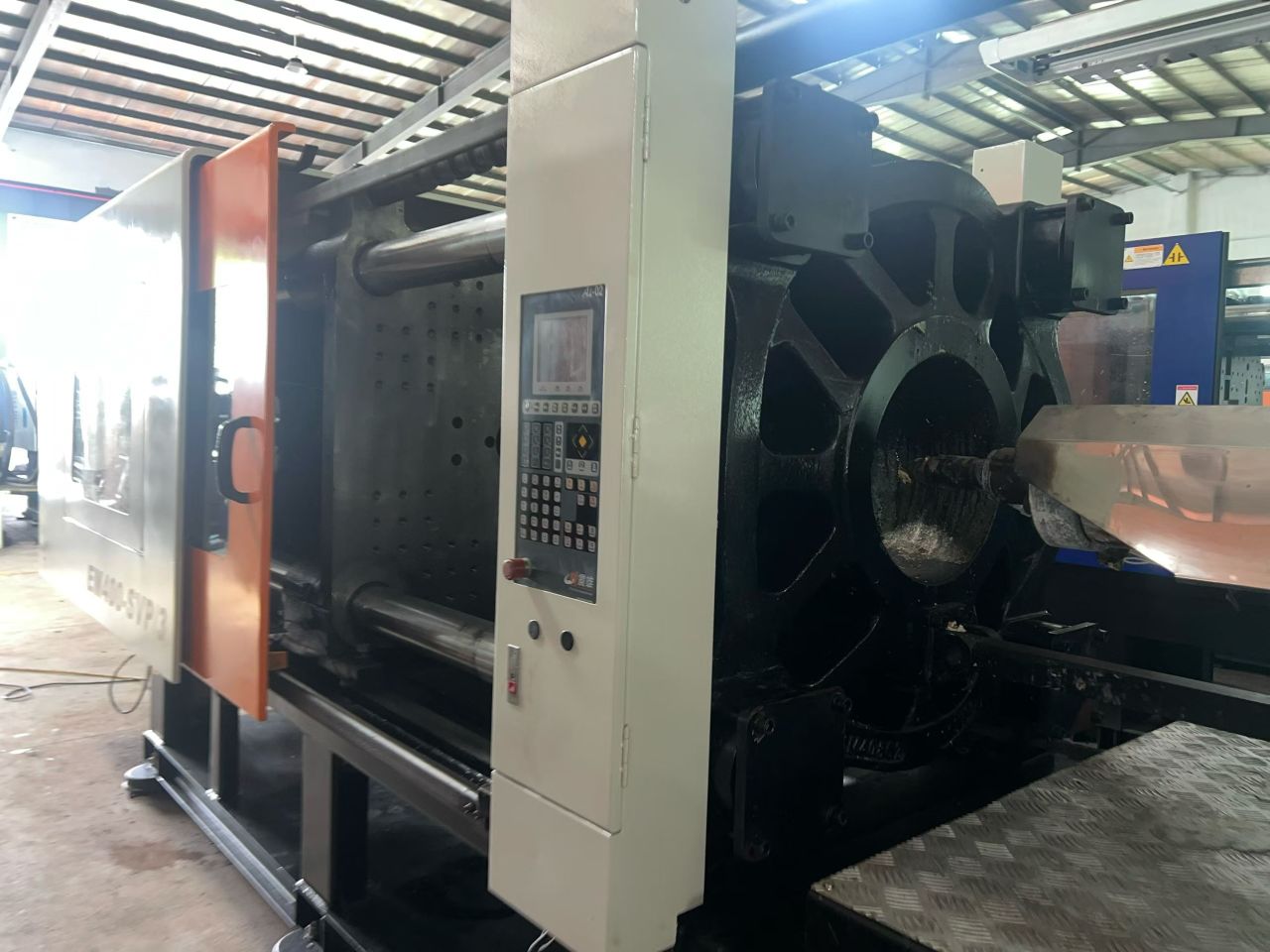

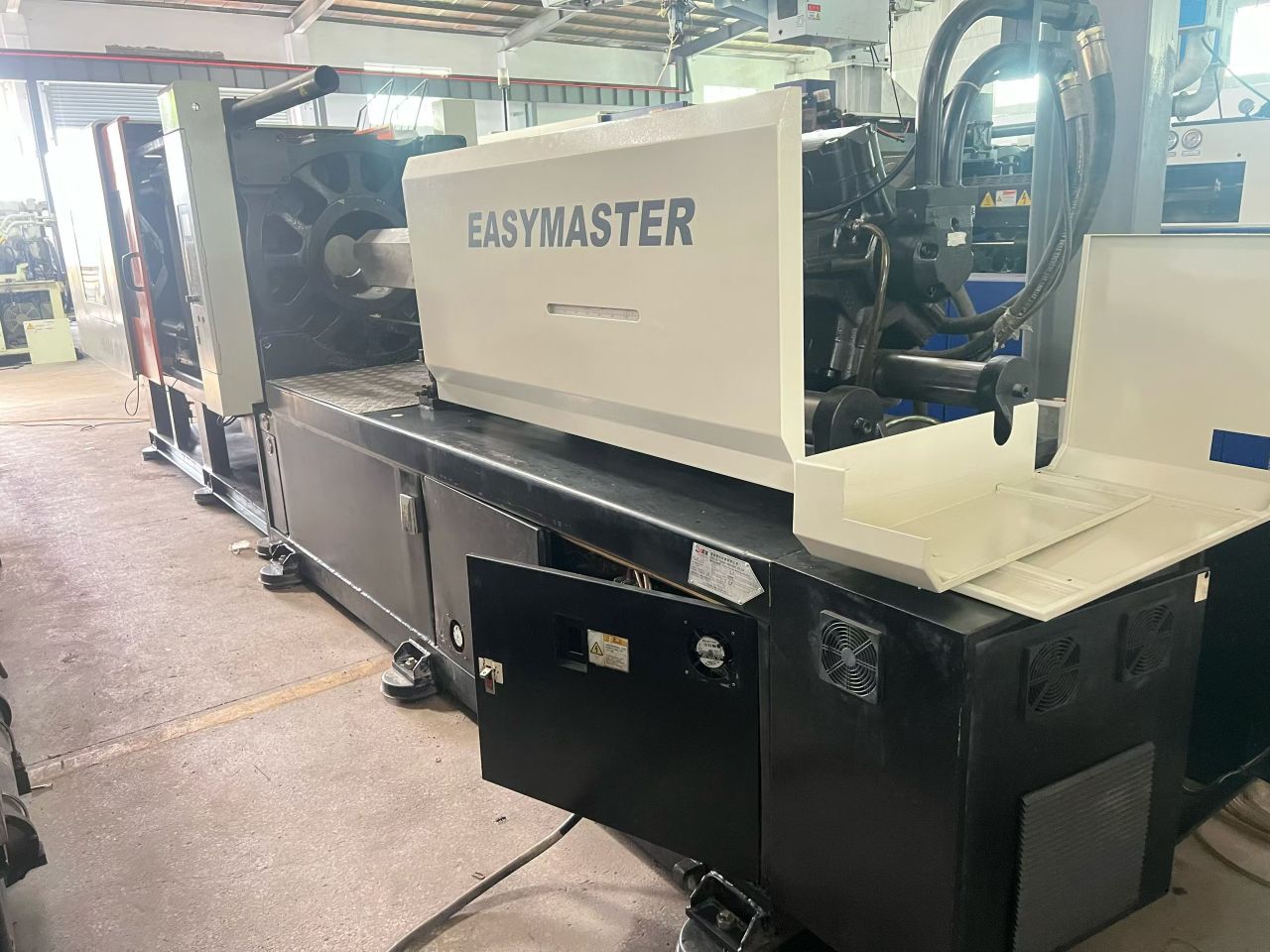

Used 400 Ton EM400-SVP-3 Injection Molding Machine

Item No. Y-Z-0013Chen HsongYear 2021China

Used EM400-SVP-3 injection molding machine,400-ton clamping force with triple-screw options for mass-producing medium-large heavy-duty plastic parts.

Request a QuoteSpecification PDF

Specifications

Item Number: Y-Z-0013
Brand: CHEN HSONG
Model: EM400-SVP-3
Year: 2021
Location: Dongguan City, China
Screw Diameter (mm): 75
Injection Weight (PS) (g): 1402
Injection Rate (PS) (g/s): 389
Clamping Force (kN): 4000
Dist. Between Tie Bars (H x V) (mm): 730×730
Machine Dimension (L x W x H) (m): 8.0×1.7×2.3
Machine Weight (t): 12.8

Tonnage Range: 300-500T

Why This Machine

The EM400-SVP-3 is a versatile injection molding machine featuring 400-ton clamping force and three screw options (67/75/83 mm), with PS shot weights up to 1,717 g. Ideal for household plastics, appliance housings, automotive parts, packaging, and industrial components. We offer detailed inspection reports, financing options, and worldwide shipping.

Description

Used EM400-SVP-3 injection molding machine with three screw options (67/75/83 mm) and 400-ton clamping force. PS shot weight ranges from 1,119g to 1,717g, with maximum injection pressure up to 217 MPa. Featuring 730×730 mm tie-bar spacing and 250–750 mm mould height, it is suitable for producing household plastics, appliance housings, automotive parts, packaging, and industrial components.
