Used 320 Ton EM320-SVP-3 Injection Molding Machine

Item No. Y-Z-0012Chen HsongYear 2020China

Used EM320-SVP-3 injection molding machine,320-ton clamp force with triple-screw options for mass-producing large heavy plastic products.

Request a QuoteSpecification PDF

Specifications

Item Number: Y-Z-0012

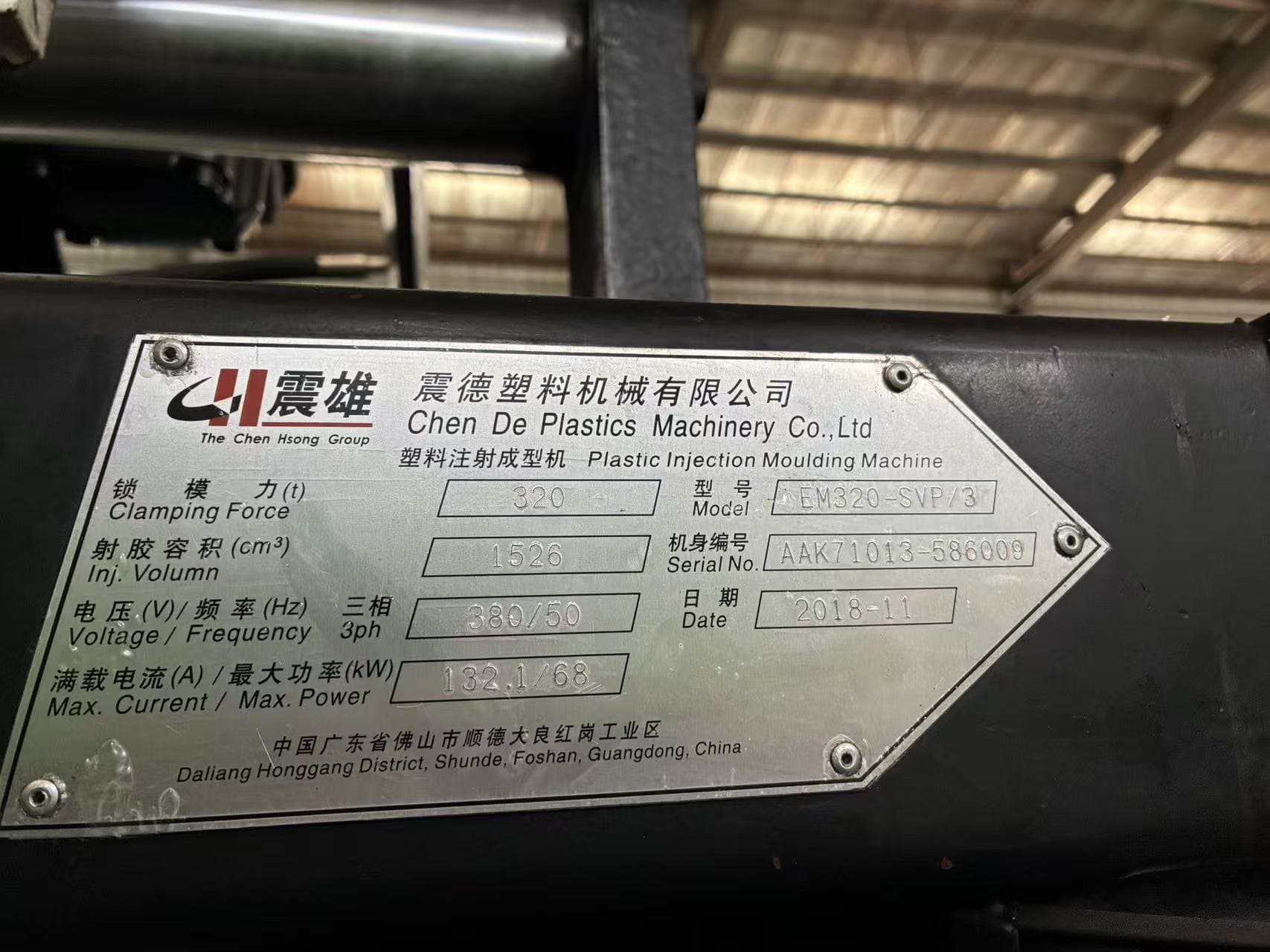

Brand: CHEN HSONG
Model: EM320-SVP-3
Year: 2020
Location: Dongguan City, China
Screw Diameter (mm): 67
Injection Weight (PS) (g): 1038
Injection Rate (PS) (g/s): 328
Clamping Force (kN): 3200

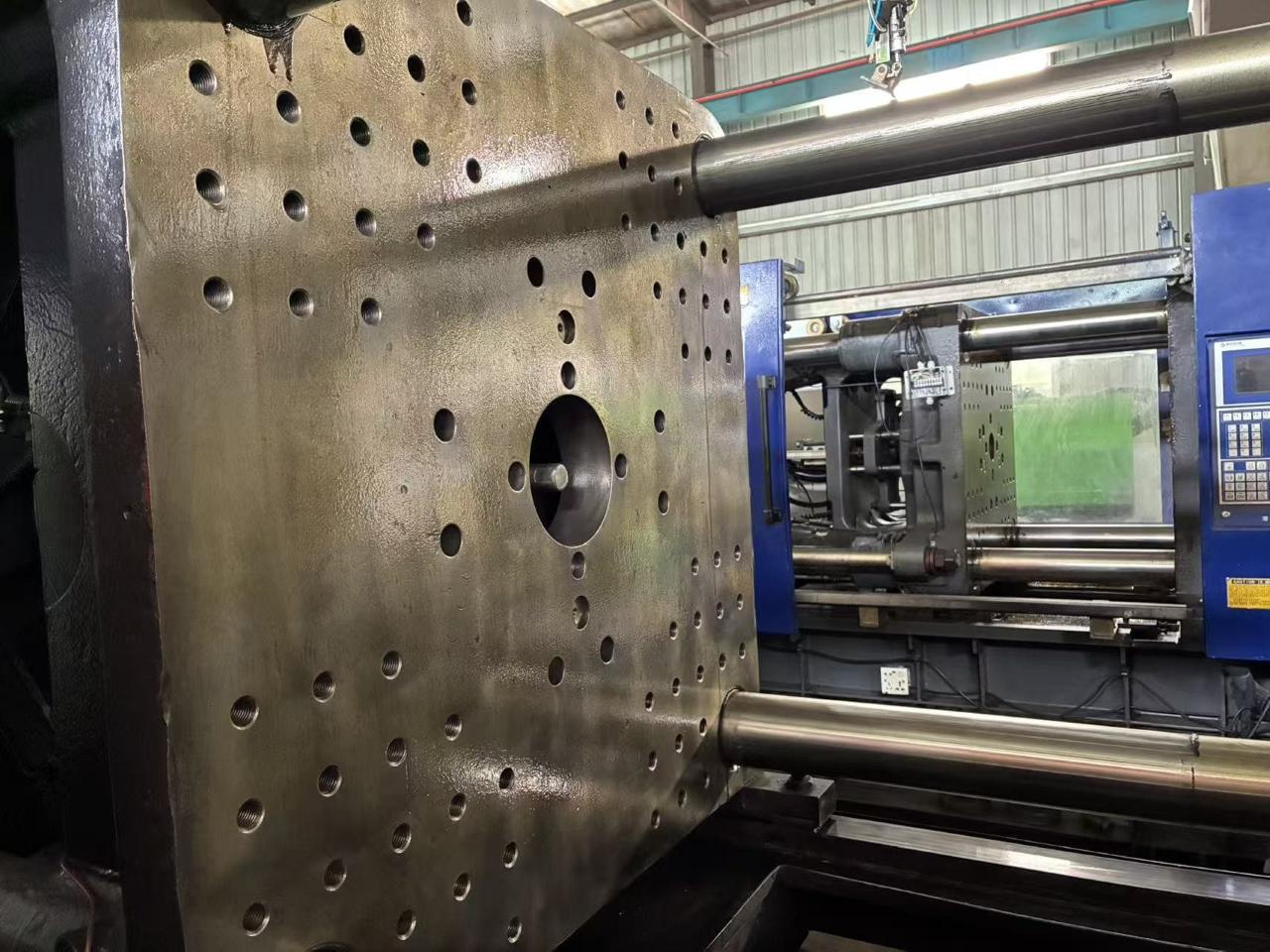

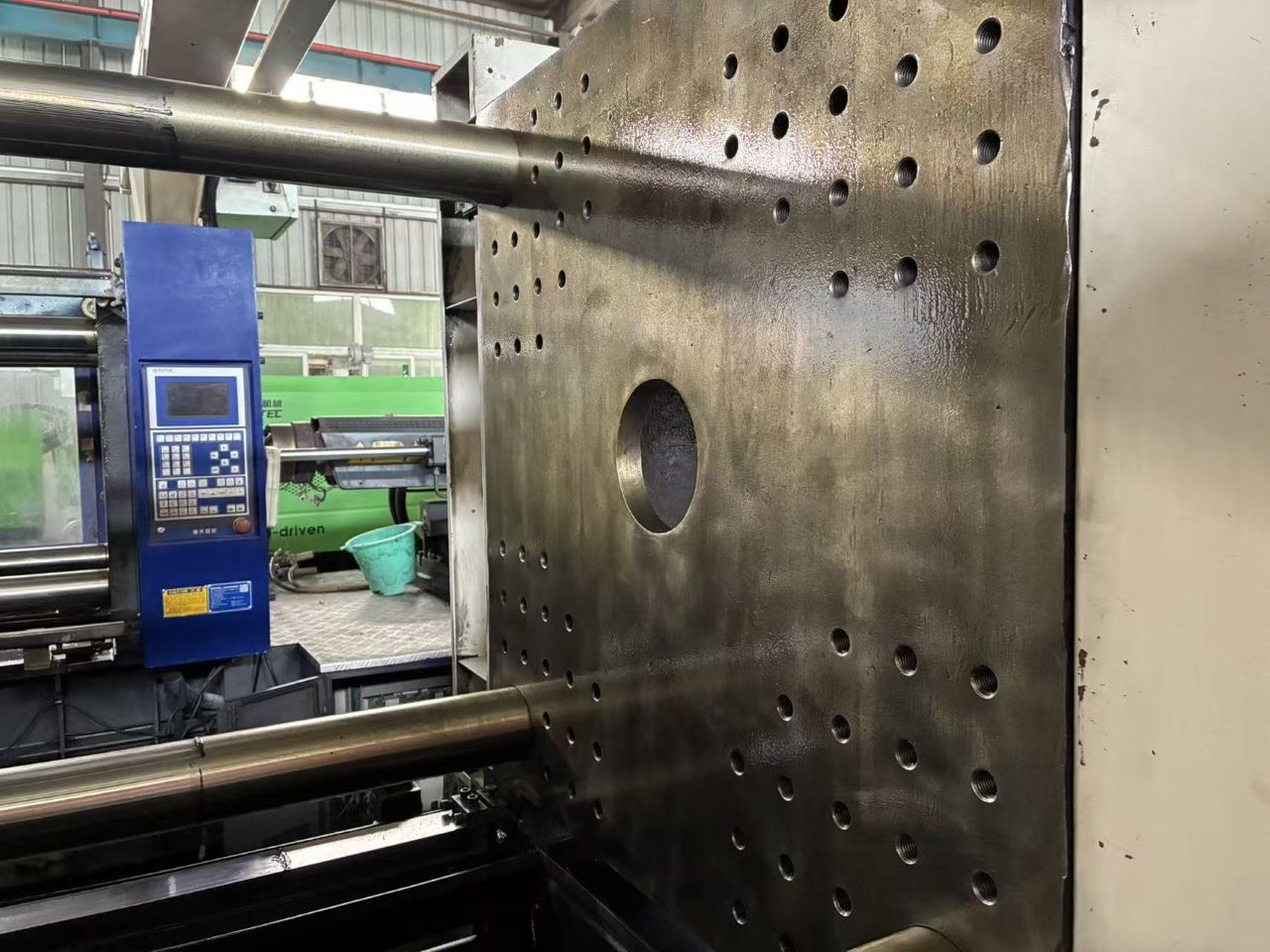

Dist. Between Tie Bars (H x V) (mm): 660×660
Machine Dimension (L x W x H) (m): 6.7×1.6×2.3
Machine Weight (t): 9.8

Tonnage Range: 300-500T

Why This Machine

The EM320-SVP-3 is a versatile injection molding machine featuring 320-ton clamping force and three screw options (60/67/75 mm), with PS shot weights up to 1,300 g. Ideal for household plastics, electronic housings, automotive parts, packaging, and industrial components. We offer detailed inspection reports, financing options, and worldwide shipping.

Description

Used EM320-SVP-3 injection molding machine with three screw options (60/67/75 mm) and 320-ton clamping force. PS shot weight ranges from 832g to 1,300g, with maximum injection pressure up to 219 MPa. Featuring 660×660 mm tie-bar spacing and 220–680 mm mould height, it is suitable for producing household plastics, electronic housings, automotive parts, packaging, and industrial components.
